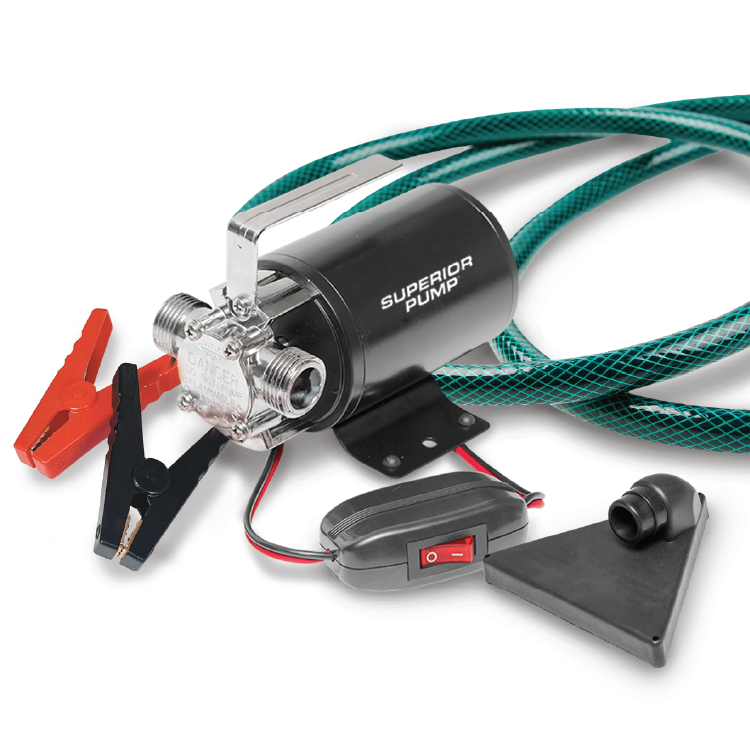

90045

Aluminum Light-Duty, Water Transfer Pump Kit
12 V, 7 Ft. Cables, 330 GPH

Product Features:

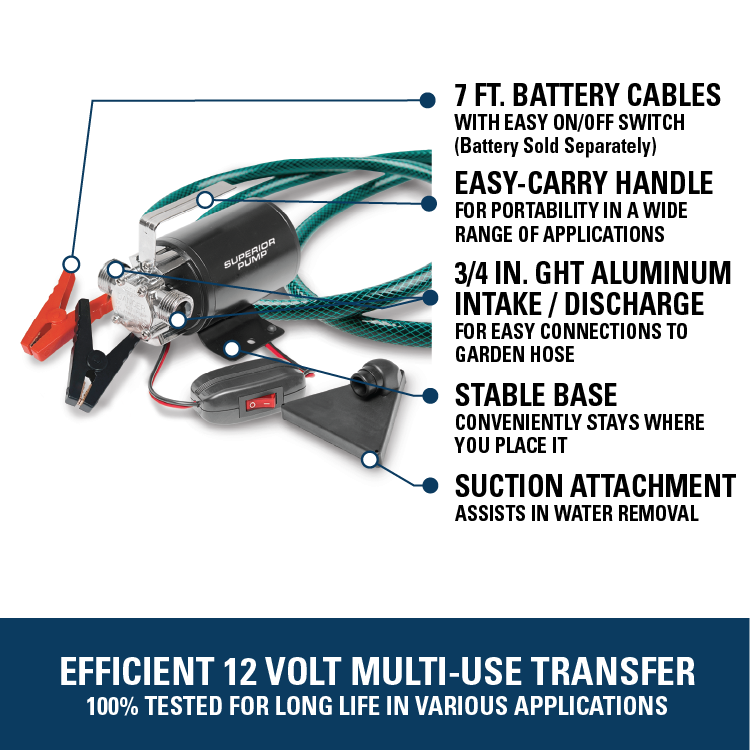

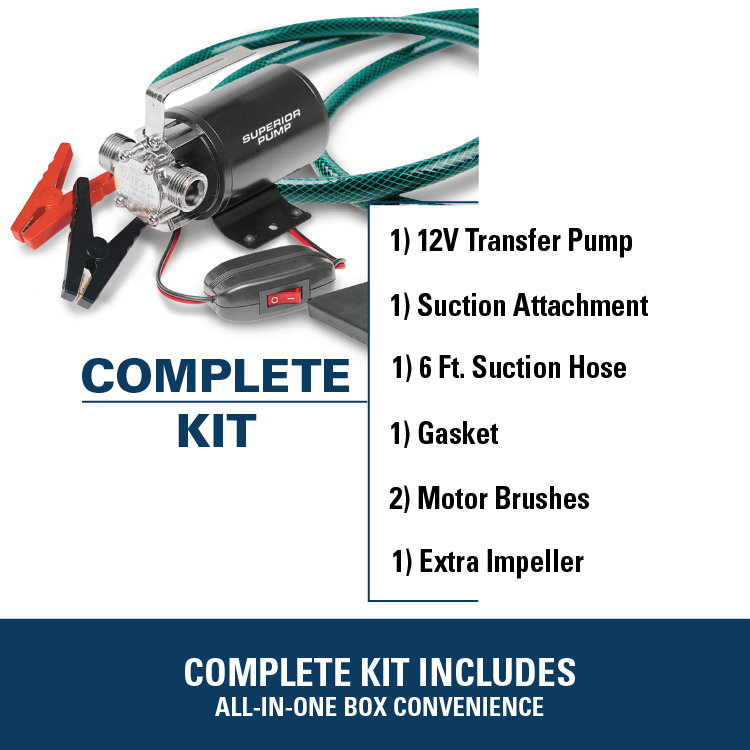

LIGHT DUTY, LIGHTWEIGHT TRANSFER PUMP KIT INCLUDES:

- 12V Transfer Pump, with 7 Ft. Battery Cables
- Water Suction Attachment
- 6 Ft. Garden Hose
- Extra Impeller, Gasket and Spare Motor Brushes

CONVENIENT PERFORMANCE
This handy, aluminum transfer pump works great for draining boats, kiddie pools, water heaters, washing machines and more, down to an 1/8 in. of surface (with attachment).

EFFICIENT and SAFE
Brushed-style motor offers good torque at low speeds offering more water transfer with less electricity.

SUCTION LIFT UP TO 35 FT.
Maximum discharge flow rate of 330 GPH on a flat surface and self-priming up to 7 ft. depth.

Engineered to Perform, and Built to Last®
100% factory tested and backed with a 1 year limited warranty.

Technical Documentation

Manual

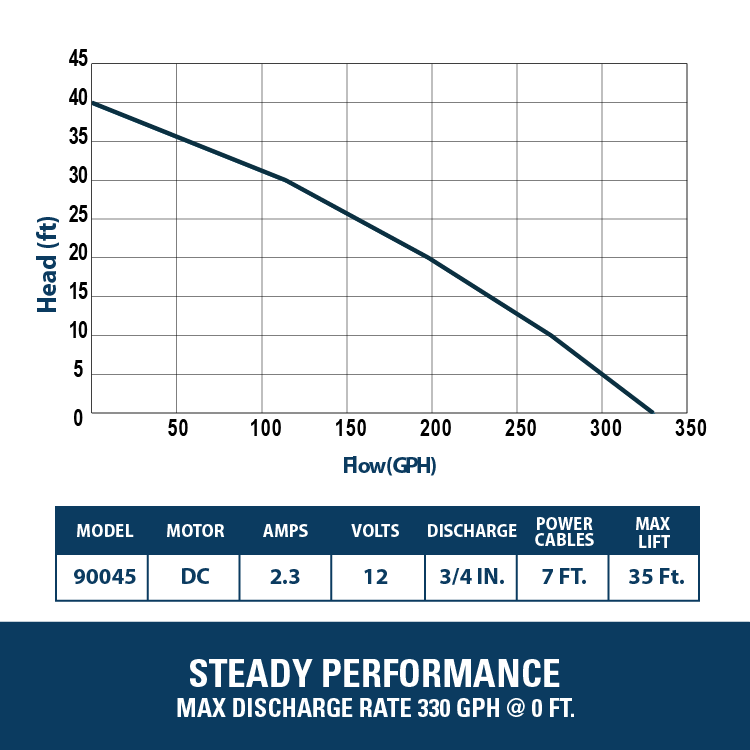

Performance:

Flow Rate Up To 330 GPH @ 0 FT.
Head Up To 35 FT.

Technical Specifications:

Amps DC Motor
Discharge Location SIDE SUCTION / DISCHARGE
Discharge Size 3/4 IN. GHT
Adapter Included SUCTION ATTACHMENT / EXTRA IMPELLER, GASKET AND MOTOR BRUSHES
Power Cord 7 Ft. Cables
Removes Water Down To 1/8 IN. With Suction Attachment in Place
Switch Type Manual, User-Controlled
Supply Voltage 12 V
Retail Box Measurements 8.35 IN. Length x 6.77 IN. Height x 8.35 IN. Width
Weight 6.4 Lbs.

Product Specifications:

Liquid Temperature Range 35° F - 120° F
Maximum Working Pressure 15.2 PSI
Operating Position Horizontal
Warranty 1 YEAR LIMITED WARRANTY

Construction Characteristics:

Impeller Rubber
Impeller Design Flex-Vane, Paddle
Motor Fan Cooled, Brushed Motor
Pump Body Aluminum
