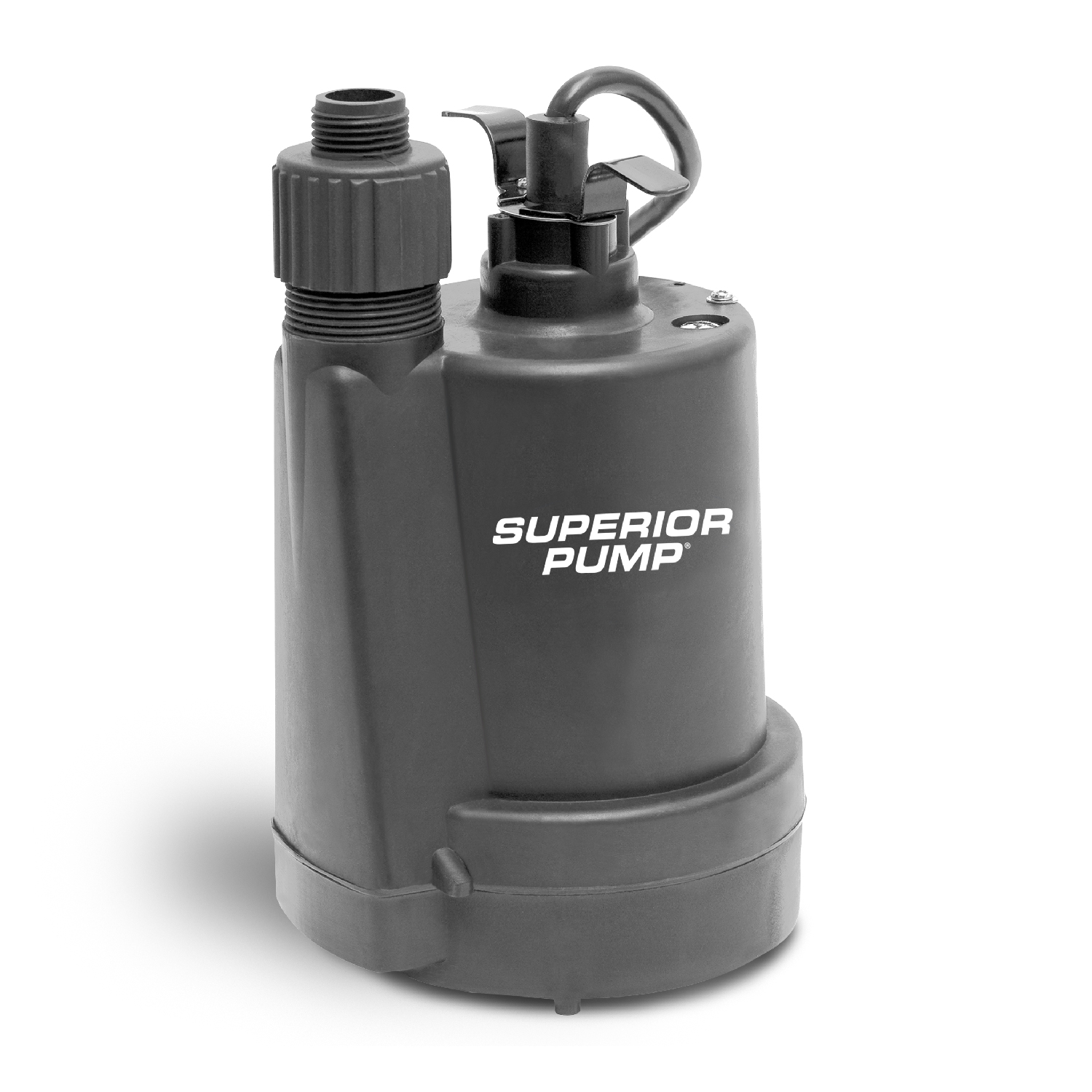

1/4 HP Fiberglass Reinforced Thermoplastic Submersible Water Transfer/Removal Pump
120 V, 60 Hz, 10 Ft. Cord, 1800 GPH

Product Features:

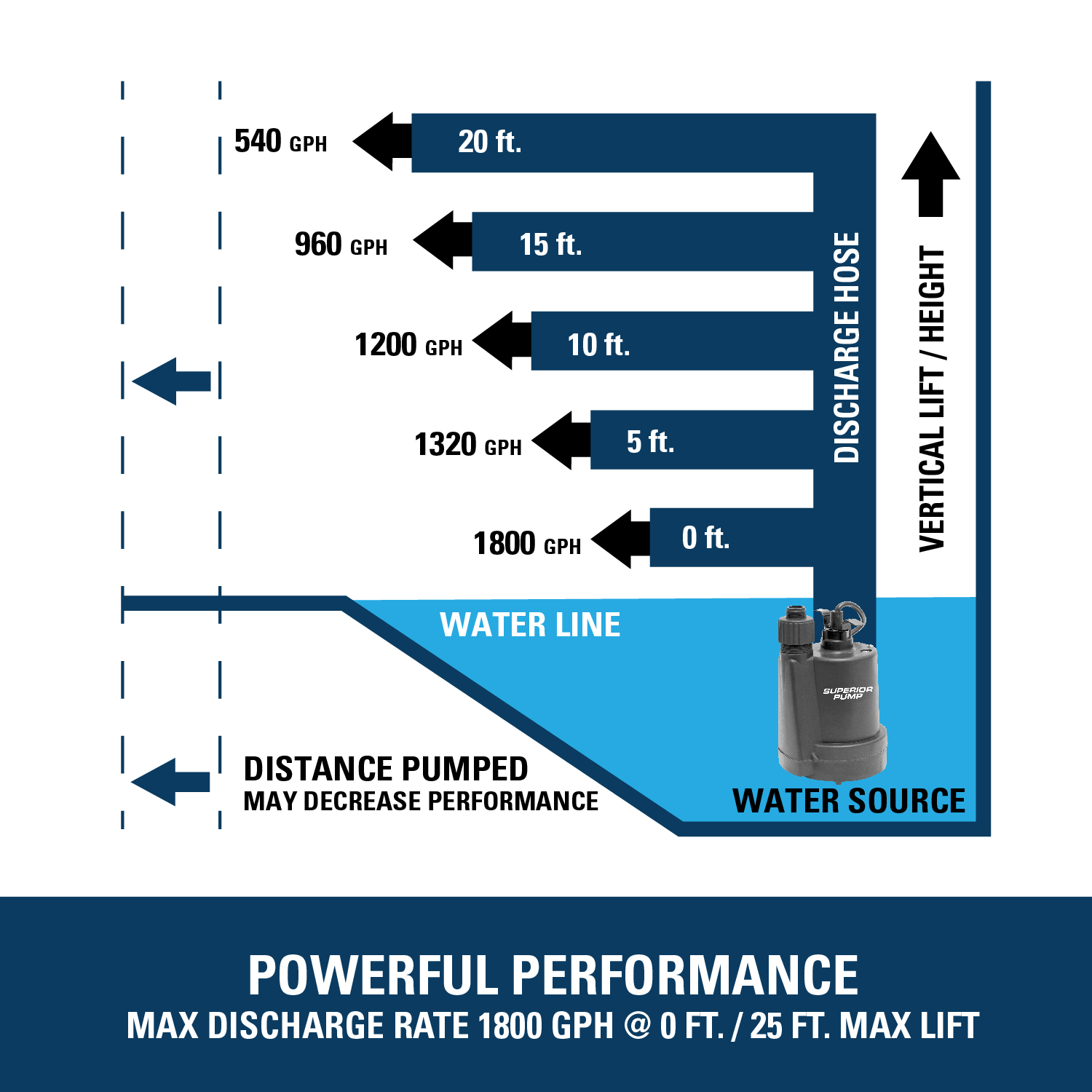

**POWERFUL PERFORMANCE** Maximum discharge flow rate 1800 GPH @ 0 ft. of vertical lift; 1200 GPH @ 10 ft. and engineered for reliable performance on utility and multi-purpose applications requiring vertical lift performance of up to 25 ft.

**ENGINEERED EFFICIENT** Efficient, PSC motor features premium 100% solid copper motor windings (not copper plated) for years of reliable motor performance. This pump is also designed with dual o-ring motor seals, to keep interior components protected, dry and running right.

**CLOG-FREE, FAST WATER REMOVAL** Fully submersible, Multi-purpose utility water transfer/removal pump, with bottom suction design, and serviceable intake screen, removes water fast, down to 1/8 in. of surface and passes up to 1/8 in. solids, to minimize clogging.

**CERTIFIED SAFE, and WARRANTIED** SUPERIOR PUMPS are Built to Last® with quality in mind, and this model is 100% factory tested and backed with a 1 year limited warranty. UL, CSA and SSPMA Certified for safe and dependable performance.

**LIGHTWEIGHT, DURABLE AND STURDY** Durable sealed thermoplastic construction for long life. Lightweight, corrosion-resistant, strong and easily portable.

**WIDE RANGE OF APPLICATIONS** Efficient, powerful water removal from hot tubs, pools, landscape ponds, standing water in basements, job sites, boats, and more.

**EASY REACH POWER** 10 ft. power cord for safe and convenient installation, without the need for extension cords.

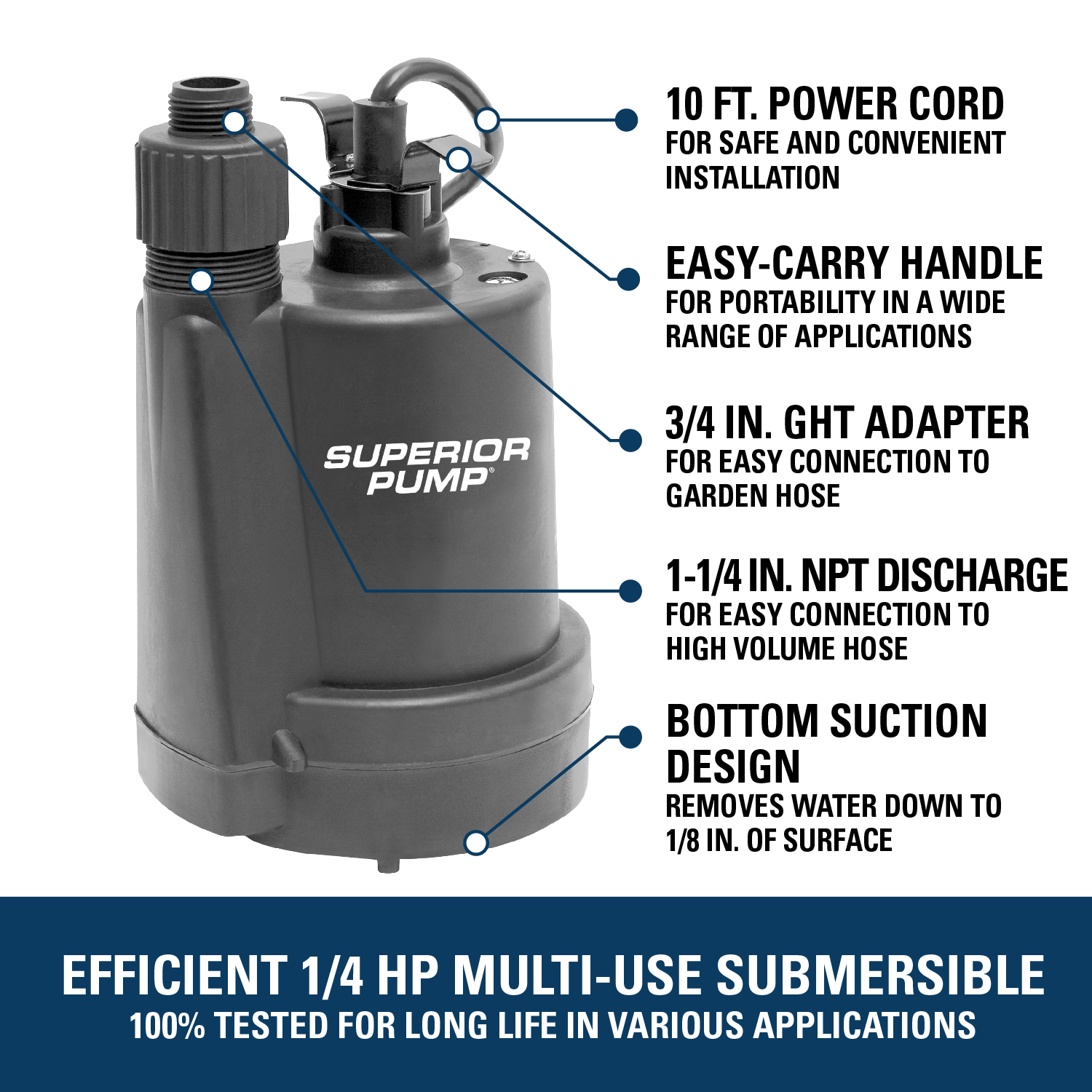

**CONVENIENT ADAPTERS AND HOSE INCLUDED** 1-1/4 in. NPT Discharge with 3/4 in. GHT garden hose adapter for large or small volume water transfer/removal. (Hoses not included.)

**ERGONOMIC, PORTABLE** Easy-carry, finger-grip handle designed for portability in a wide range of applications.

Technical Documentation

Performance:

  • Flow Rate Up To 1800 GPH @ 0 FT.
  • Head Up To 25 FT.

Technical Specifications:

  • Amps 3.8 A
  • Discharge Location TOP DISCHARGE
  • Discharge Size 1-1/4 IN. NPT
  • Adapter Included 3/4 IN. GHT ADAPTER
  • HP 1/4 HP
  • Power Cord 10 FT.
  • Removes Water Down To 1/8 IN. of Surface
  • Solids Handling 1/8 IN.
  • Switch Type Manual, User-Controlled
  • Supply Voltage 120 V

Product Specifications:

  • Liquid Temperature Range 35° F - 120° F
  • Maximum Working Pressure 10.8 PSI
  • Operating Position Vertical
  • Warranty 1 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Impeller Thermoplastic
  • Impeller Design NON-CLOGGING VORTEX IMPELLER
  • Motor PSC Motor
  • Pump Body Fiberglass Reinforced Thermoplastic

Certifications:

  • culus
  • csa
