1/2 HP Cast Iron, Water Transfer/Removal Sink Pump System with Piggy Back Float Switch (Pump Model 92541)
115 V, 60 Hz, 10 Ft. Cord, 3300 GPH, 6 Gallon Tank & Check Valve Included

Product Features:

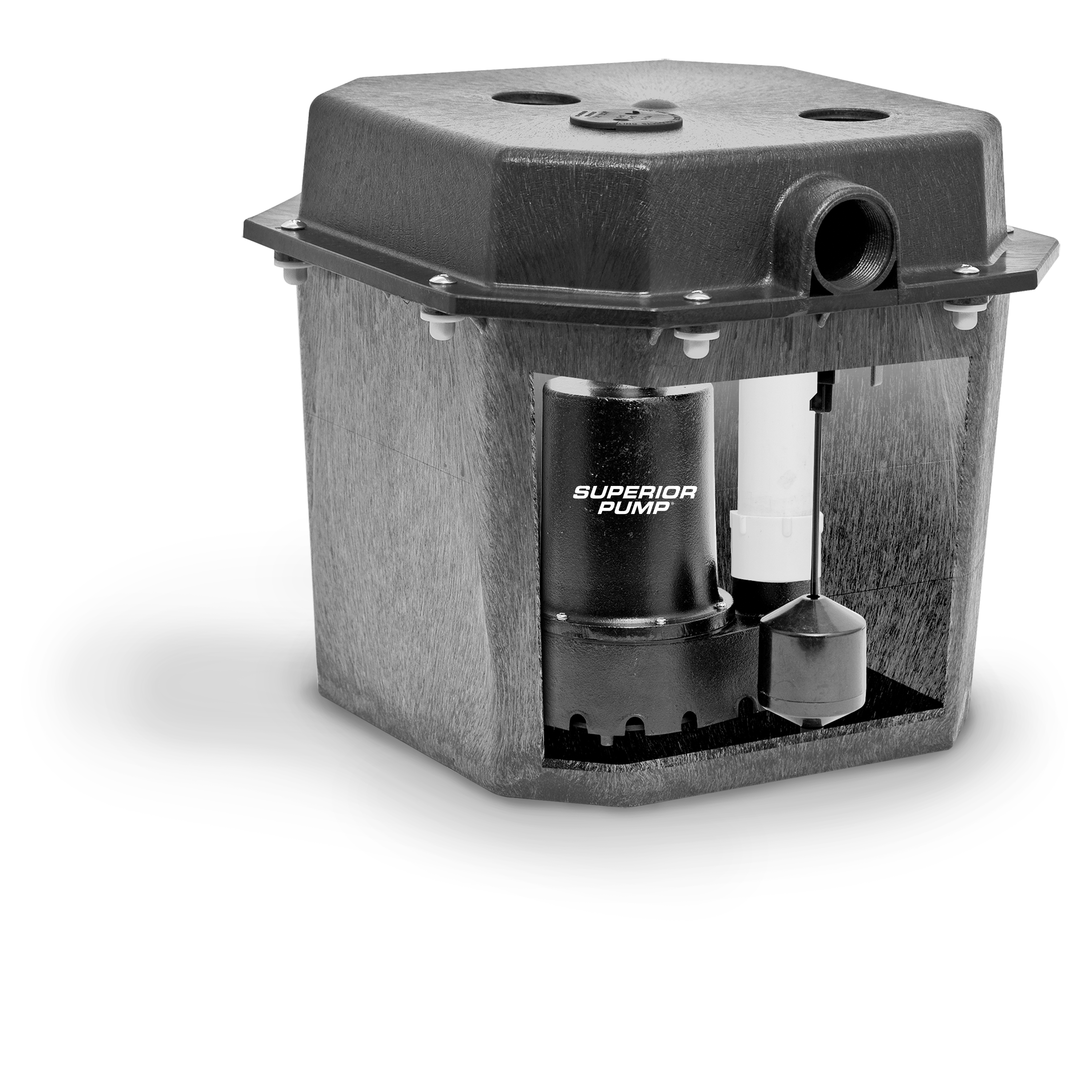

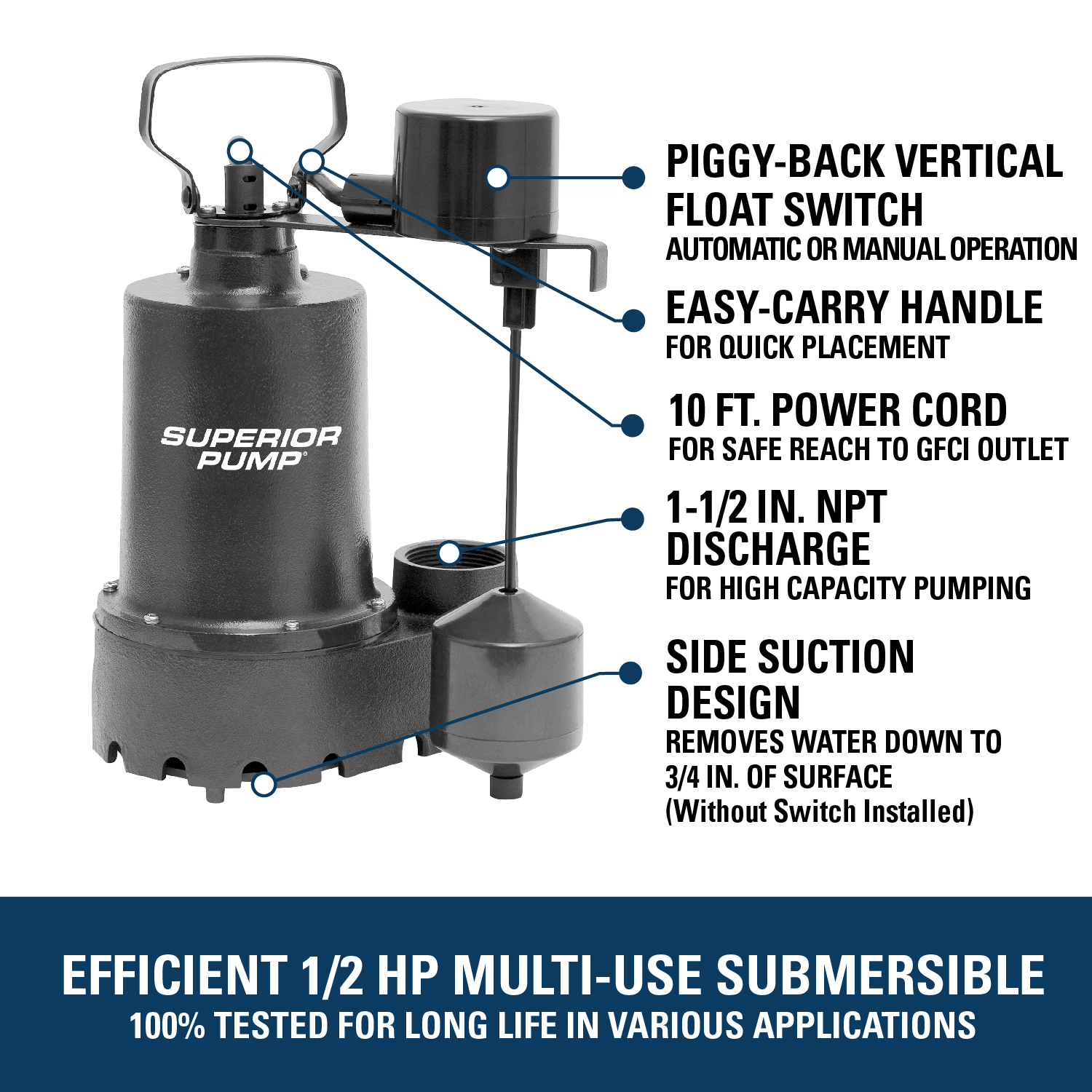

**COMPLETE SINK PUMP KIT** COMPLETE ALL-IN-ONE REMOTE DRAIN SYSTEM SOLUTION KIT INCLUDES: 1/2 HP Cast Iron Water Removal Utility Pump with Piggy-back Vertical Float Switch, 6 Gallon Capacity Polystructural foam tank, 1-1/2 in. Full Flow Check Valve, PVC Plumbing Pipe

**POWERFUL PERFORMANCE** Maximum discharge flow rate 3300 GPH @ 0 ft. of vertical lift; 2400 GPH @ 10 ft. and engineered for reliable performance on utility and multi-purpose applications requiring vertical lift performance of up to 25 ft.

**ENGINEERED OIL-FREE AND EFFICIENT** Efficient, PSC motor features premium 100% solid copper motor windings (not copper plated) for years of reliable motor performance. This pump is also designed with dual o-ring motor seals, to keep interior components protected, dry and running right.

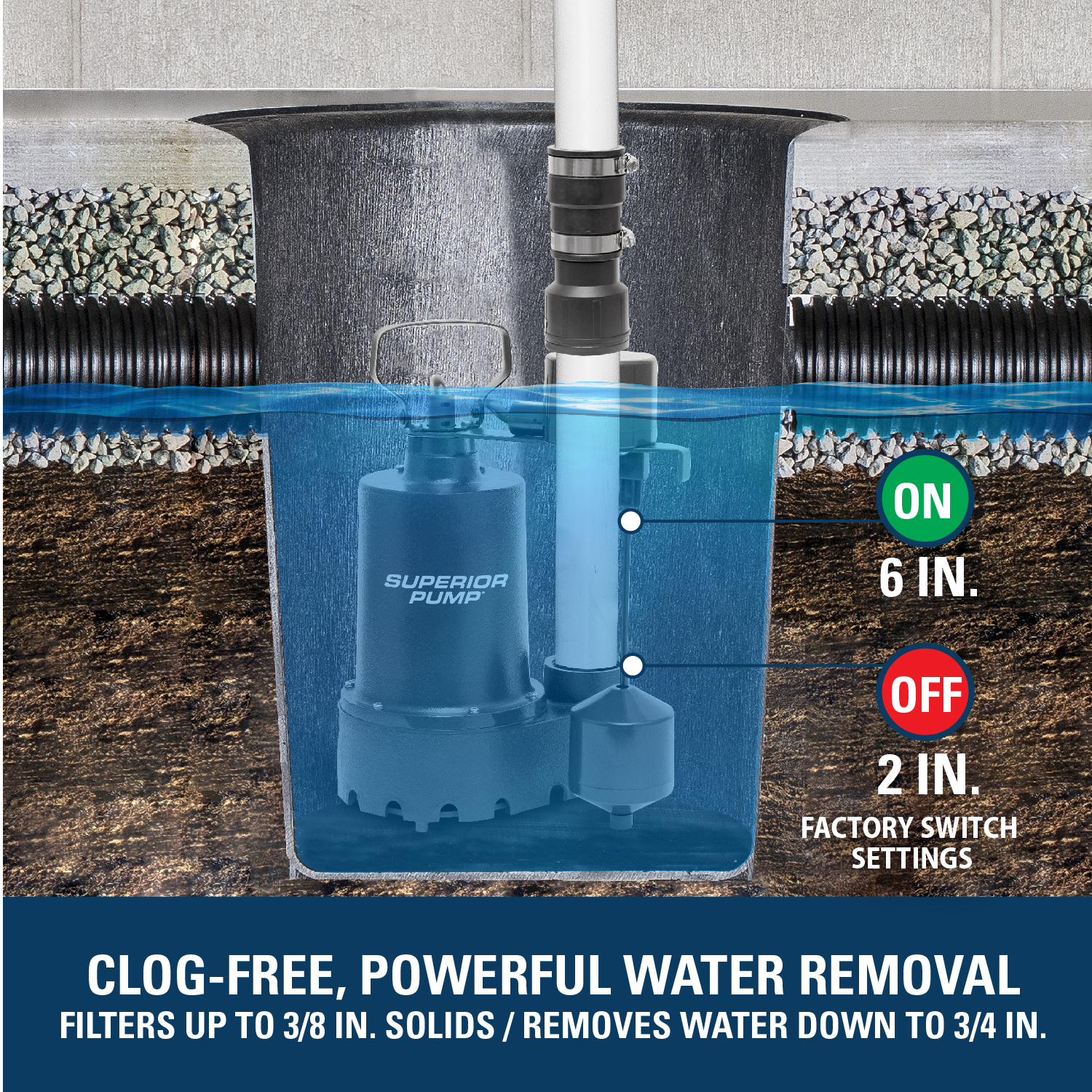

**CLOG-FREE, FAST WATER REMOVAL SYSTEM** Fully submersible utility multipurpose water transfer and removal pump, featuring a bottom suction design that filters debris and quickly removes water down to 3/4 inch of surface, while passing solids up to 3/8 inch to minimize clogging. 6 Gallon capacity tank collects water effectively.

**CERTIFIED SAFE, and WARRANTIED** SUPERIOR PUMPS are Built to Last® with quality in mind, and this model is 100% factory tested and backed with a 3 year limited warranty. The pump is CSA, UL and SSPMA Certified for safe and dependable performance.

**LIGHTWEIGHT, DURABLE AND STURDY** Durable cast iron pump and polystructural foam tank for long life.

**WIDE RANGE OF APPLICATIONS** Efficient, powerful water removal from wet bars, outdoor kitchens, utility sinks and more.

**EASY REACH POWER** 10 ft. power cord for safe and convenient installation, without the need for extension cords.

**CONVENIENT ADAPTERS** 1-1/2 in. NPT Discharge with full flow check valve included, for large or small volume water transfer/removal.

**ERGONOMIC, PORTABLE** Easy-carry ergonomic design for simple install in a wide range of applications.

Performance:

  • Flow Rate Up To 3300 GPH @ 0 FT.
  • Head Up To 25 FT.

Technical Specifications:

  • Single Phase
  • Amps 4.9 A
  • Discharge Location SIDE
  • Discharge Size 1-1/2 IN NPT
  • Adapter Included -
  • HP 1/2 HP
  • Power Cord 10 FT. PIGGY-BACK POWER CORD
  • Removes Water Down To 3/4 IN. FROM SURFACE (WITHOUT SWITCH INSTALLED)
  • Solids Handling 3/8 IN.
  • Switch Type PIGGY-BACK VERTICAL FLOAT SWITCH
  • Switch ON Levels 6 IN.
  • Switch OFF Levels 2 IN.
  • Supply Voltage 115 V
  • Weight 20 LBS.

Product Specifications:

  • Liquid Temperature Range 35° F - 120° F* *Intermittent use
  • Operating Position Vertical
  • Warranty 3 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Cooling Oil-Cooled
  • Impeller THERMOPLASTIC
  • Impeller Design NON-CLOGGING VORTEX IMPELLER
  • Motor PSC Motor with Thermal Overload Protection
  • Motor Bearing Ball Bearing (upper/lower)
  • Motor Casing CAST IRON
  • Motor Shaft Stainless Steel
  • Pump Base CAST IRON
  • Pump Body CAST IRON

Certifications:

  • culus
  • csa
  • sspma
