92072

1/3 HP Water Transfer/Removal Sink Pump System with Piggy Back Float Switch (Pump Model 92372)
115 V, 60 Hz, 10 Ft. Cord, 2880 GPH, 6 Gallon Tank & Check Valve Included

Product Features:

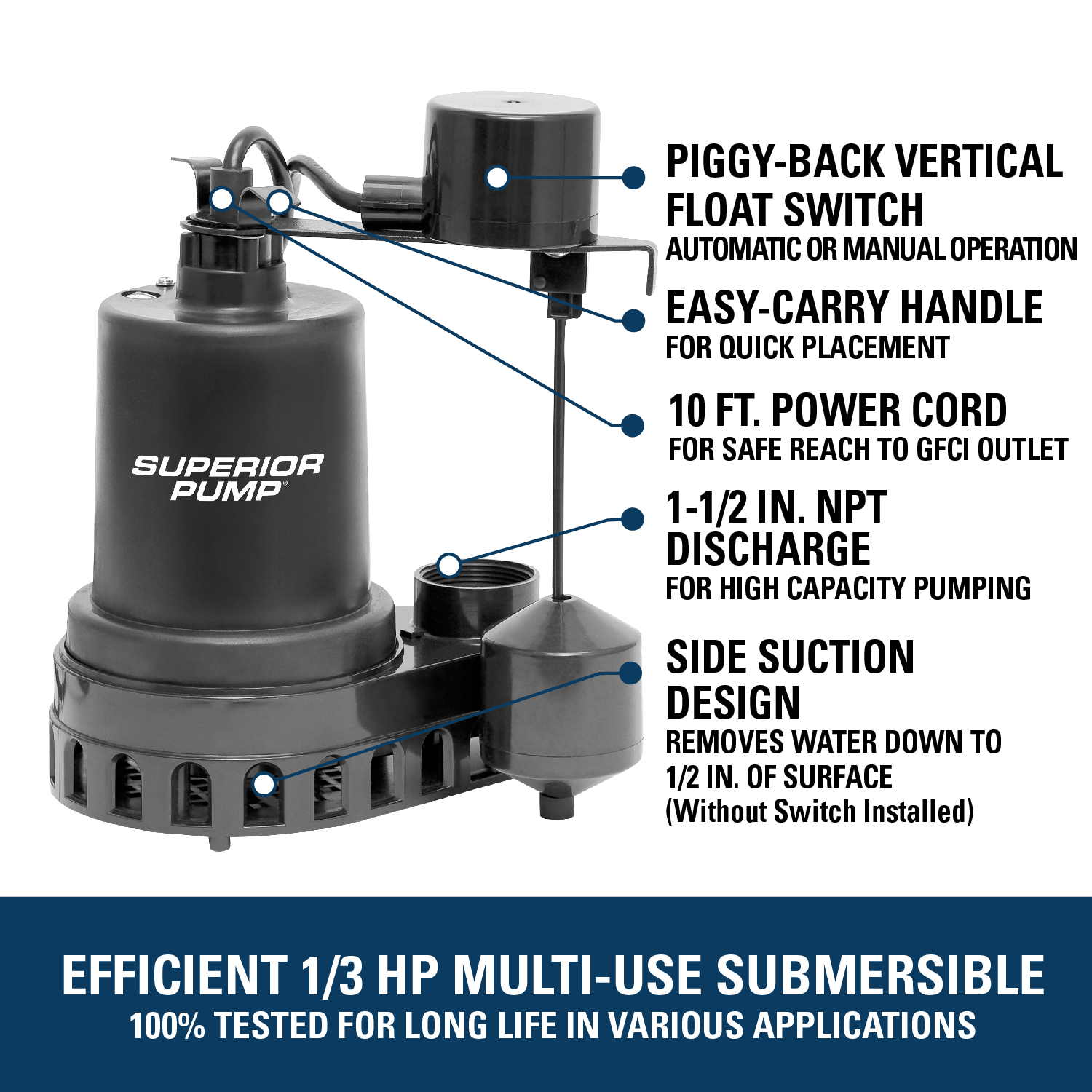

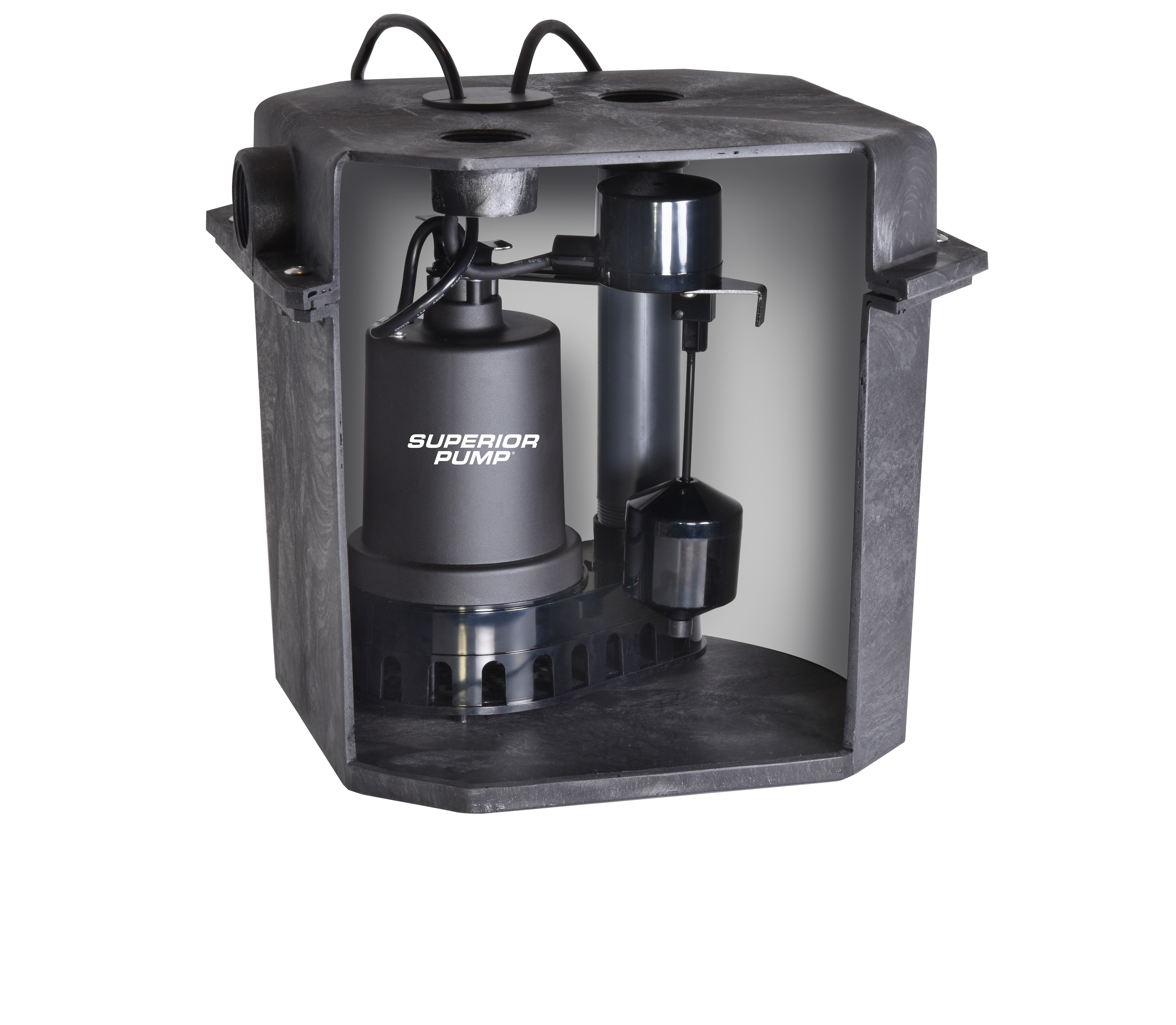

**COMPLETE SINK PUMP KIT** COMPLETE ALL-IN-ONE REMOTE DRAIN SYSTEM SOLUTION KIT INCLUDES: 1/3 HP Water Removal Utility Pump with Piggy-back Vertical Float Switch, 6 Gallon Capacity Polystructural foam tank, 1-1/2 in. Full Flow Check Valve, PVC Plumbing Pipe

**POWERFUL PERFORMANCE** Maximum discharge flow rate 2880 GPH @ 0 ft. of vertical lift; 2400 GPH @ 10 ft. and engineered for reliable performance in sump applications requiring high lift performance (Maximum lift up to 25 ft.).

**ENGINEERED OIL-FREE AND EFFICIENT** Efficient, PSC motor features premium 100% solid copper motor windings (not copper plated) for years of reliable motor performance. This pump is also designed with dual o-ring motor seals, to keep interior components protected, dry and running right.

**CLOG-FREE, FAST WATER REMOVAL SYSTEM** Fully submersible utility multipurpose water transfer and removal pump, featuring a bottom suction design that filters debris and quickly removes water down to 1 inch of surface, while passing solids up to 3/8 inch to minimize clogging. 6 Gallon capacity tank collects water effectively.

**CERTIFIED SAFE, and WARRANTIED** SUPERIOR PUMPS are Built to Last® with quality in mind. Every pump is 100% factory tested and backed with a 1 year limited warranty. CSA and SSPMA Certified for safe and dependable performance.

**RUGGED, DURABLE AND LIGHTWEIGHT** Built for years of service; fiberglass reinforced thermoplastic, sealed construction for dependability and efficient operation.

**GROUND WATER REMOVAL** Reliable groundwater removal to prevent residential flooding.

**10 FT. POWER CORD** The length you need for safe and convenient installation to the nearest GFCI outlet.

**CONVENIENT ADAPTERS** 1-1/2 in. NPT Discharge with full flow check valve included, for large or small volume water transfer/removal.

**ERGONOMIC, PORTABLE** Comfortable finger-grip handle designed for easy carry and install.

Performance:

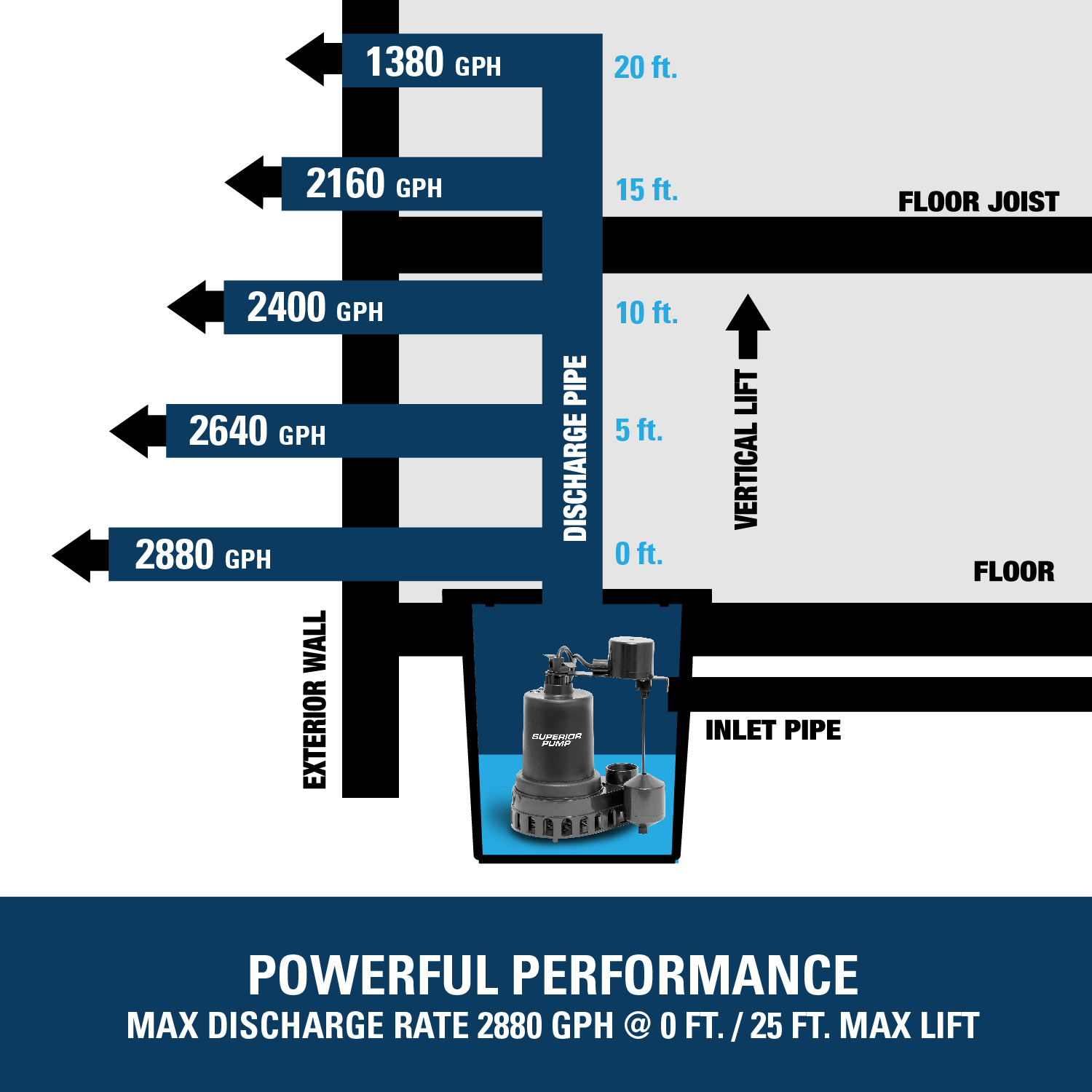

Flow Rate Up To 2880 GPH @ 0 FT.
Head Up To 25 FT.

Technical Specifications:

Single Phase
Amps 4.1 A
Discharge Location SIDE
Discharge Size 1-1/2 IN NPT
Adapter Included -
HP 1/3 HP
Power Cord 10 FT. PIGGY-BACK POWER CORD
Removes Water Down To 1 IN. FROM SURFACE (WITHOUT SWITCH INSTALLED)
Solids Handling 3/8 IN.
Switch Type PIGGY-BACK VERTICAL FLOAT SWITCH

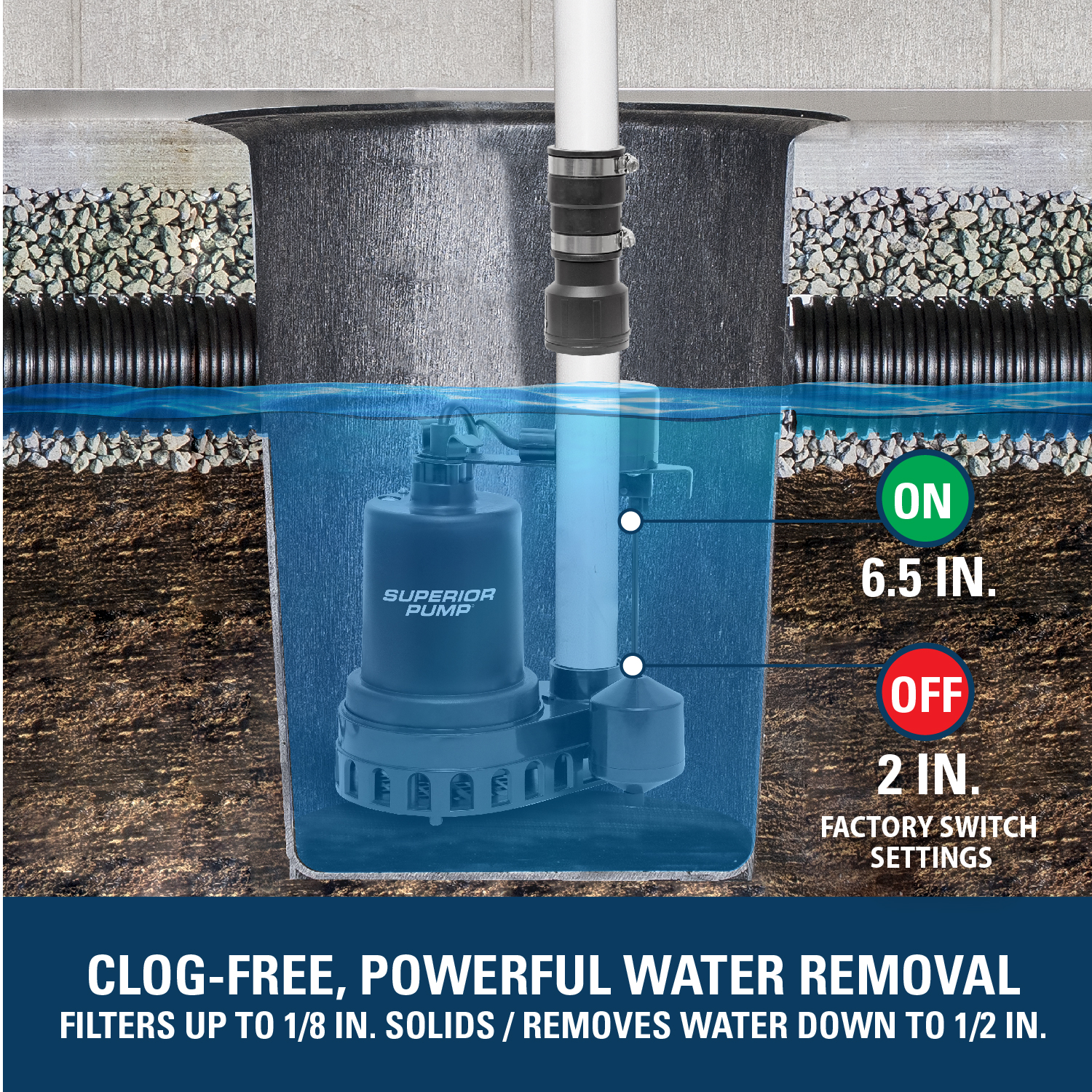

Switch ON Levels 6.5 IN.
Switch OFF Levels 2 IN.
Supply Voltage 115 V
Weight 10.8 LBS.

Product Specifications:

Liquid Temperature Range 35° F - 120° F* *Intermittent use
Operating Position Vertical
Warranty 1 YEAR LIMITED WARRANTY

Construction Characteristics:

Basin -
Cooling Oil-Cooled
Impeller Thermoplastic
Impeller Design NON-CLOGGING OPEN-TYPE IMPELLER
Motor PSC Motor with Thermal Overload Protection
Motor Bearing Ball Bearing (upper/lower)
Motor Casing THERMOPLASTIC
Motor Shaft Stainless Steel
Pump Base THERMOPLASTIC
Pump Body THERMOPLASTIC
