92392

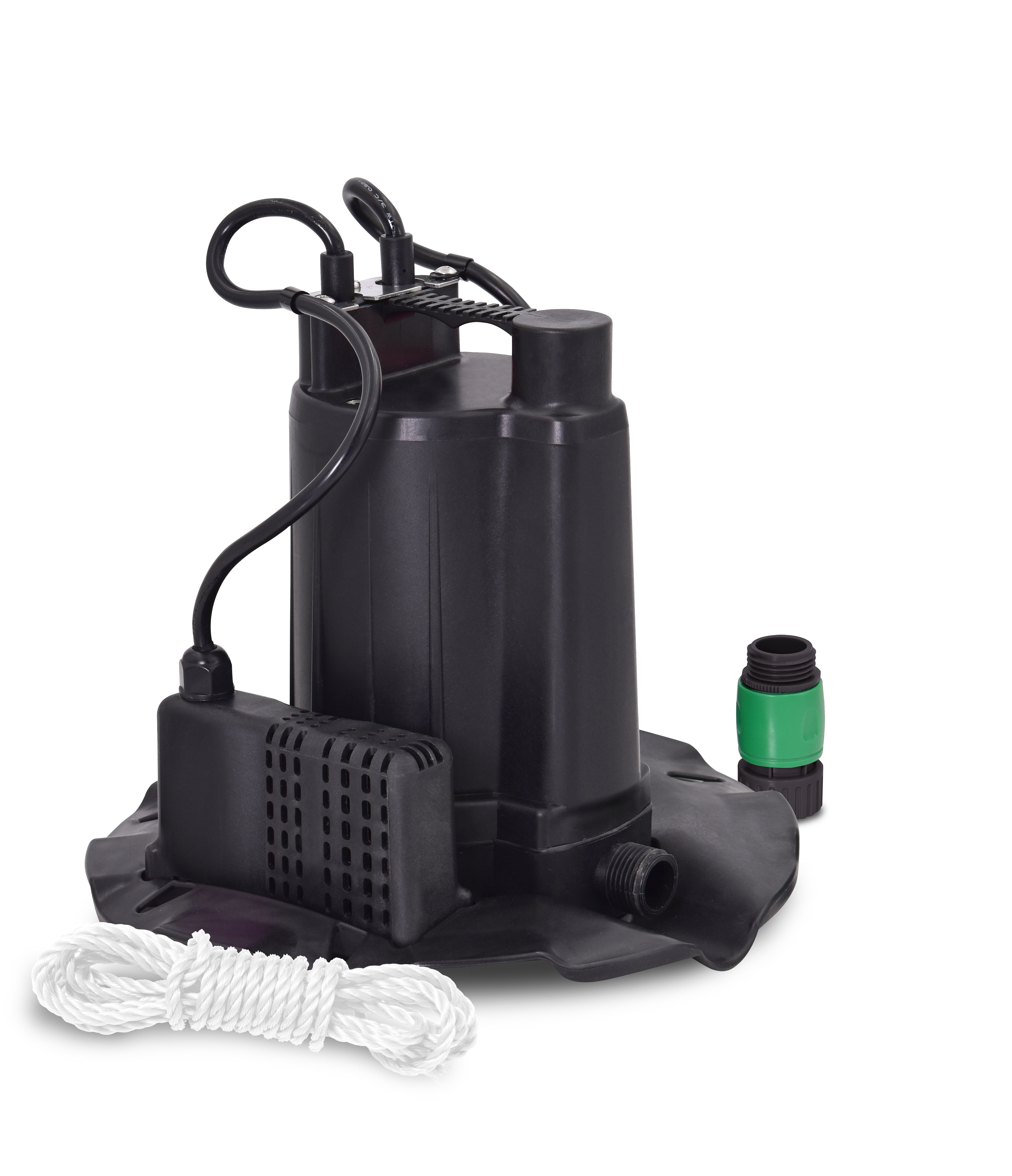

1/4 HP Pool Cover Pump 120 V, 60 Hz, 25 Ft. Cord, 1380 GPH

Product Features:

Activates in 1-1/2 in. of water and deactivates when water level reaches 3/8 in.

Designed for removing standing water from pool covers

Thermoplastic construction

3/4 in. garden hose thread discharge

Large base design for added stability

Intake screen filters debris

Size: 12-1/2 in. W x 12-1/2 in. D x 10 in. H

SJE Rhombus® Internal automatic vertical float switch

25 Ft. Power Cord

Technical Documentation

Performance:

  • Flow Rate Up To 1380 GPH @ 0 Ft.
  • Head Up To 20 Ft.

Technical Specifications:

  • Amps 2 A
  • Discharge Location Side
  • Adapter Included Pool Cover Filtration Base
  • HP 1/4 HP
  • Power Cord 25 FT.
  • Removes Water Down To 3/8 IN.
  • Switch Type Mini Vertical Float Switch
  • Switch ON Levels 1.5 IN.
  • Switch OFF Levels 3/8 IN.
  • Supply Voltage 120 V

Product Specifications:

  • Liquid Temperature Range 35° F - 120° F* *Intermittent use
  • Operating Position Vertical
  • Warranty 1 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Fasteners Stainless Steel
  • Motor PSC Motor with Thermal Overload Protection
  • Pump Base Thermoplastic
  • Pump Body Thermoplastic

Certifications:

  • csa
