1/2 HP Cast Iron Pedestal Sump Pump with Adjustable Vertical Float Switch
120 V, 60 Hz, 10 Ft. Cord, 3600 GPH

Product Features:

**POWERFUL PERFORMANCE** Maximum discharge flow rate 3600 GPH @ 0 ft. of vertical lift; 2700 GPH @ 10 ft. and engineered for reliable performance on utility and multi-purpose applications requiring high lift performance (Maximum lift up to 25 ft.).

**ENGINEERED EFFICIENT** Efficient, PSC motor features premium 100% solid copper motor windings and dual o-ring motor seals for years of reliable groundwater removal.

**CLOG-FREE, WORRY-FREE WATER REMOVAL** Submersible sump pump, with bottom suction design, thermoplastic vortex impeller, 1 1/2" pipe, and serviceable intake screen, removes water fast and passes up to 3/8 in. solids, to minimize clogging.

**CERTIFIED SAFE, and WARRANTIED** Superior Pumps are 'Built To Last'. With a combined 150 years of pump industry experience, every product is built using cutting-edge innovative technology and high-quality components. Factory tested and backed with a 5-year limited warranty. UL, CSA and SSPMA Certified for safe and dependable performance.

**RUGGED, DURABLE AND STURDY** Built for years of service; stainless steel housing with a cast iron base, paired with corrosion-resistant thermoplastic, sealed construction for dependability and efficient operation.

**GROUND WATER REMOVAL** Reliable groundwater removal to prevent residential flooding.

**10 FT. POWER CORD** The length you need for safe and convenient installation to the nearest GFCI outlet.

**CONVENIENT CONNECTIONS** 1-1/2 in. NPT Discharge for high volume water removal.

Technical Documentation

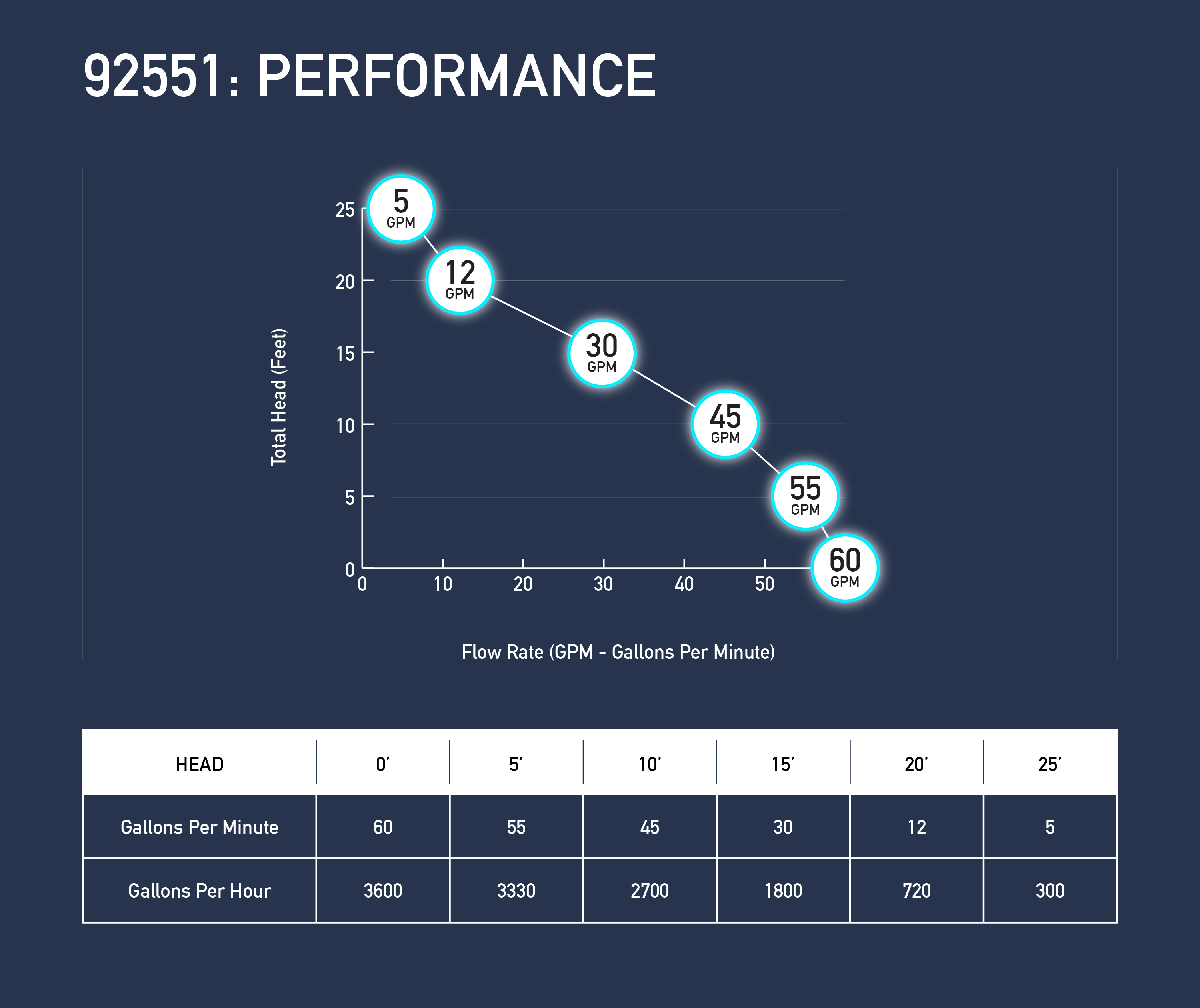

Performance:

  • Flow Rate Up To 3600 GPH @ 0 FT.

Technical Specifications:

  • Single Phase
  • Amps 3.06 A
  • Discharge Location SIDE
  • Discharge Size 1-1/2 IN NPT
  • HP 1/2 HP
  • Power Cord 10 FT. POWER CORD
  • Removes Water Down To 4 IN. FROM SURFACE (WITHOUT SWITCH INSTALLED)
  • Solids Handling 3/8 IN.
  • Switch Type INTEGRAL VERTICAL FLOAT SWITCH
  • Switch ON Levels ADJUSTABLE
  • Switch OFF Levels 6 IN.
  • Supply Voltage 115 V

Product Specifications:

  • Liquid Temperature Range 35° F - 180° F
  • Warranty 5 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Cooling Oil-Cooled
  • Impeller STAINLESS STEEL
  • Impeller Design NON-CLOGGING OPEN-TYPE IMPELLER
  • Motor PSC Motor with Thermal Overload Protection
  • Motor Bearing Ball Bearing (upper/lower)
  • Motor Casing CAST IRON
  • Motor Shaft Stainless Steel
  • Pump Base CAST IRON
  • Pump Body CAST IRON

Certifications:

  • culus
  • csa
  • sspma
