Technical Documentation

92553

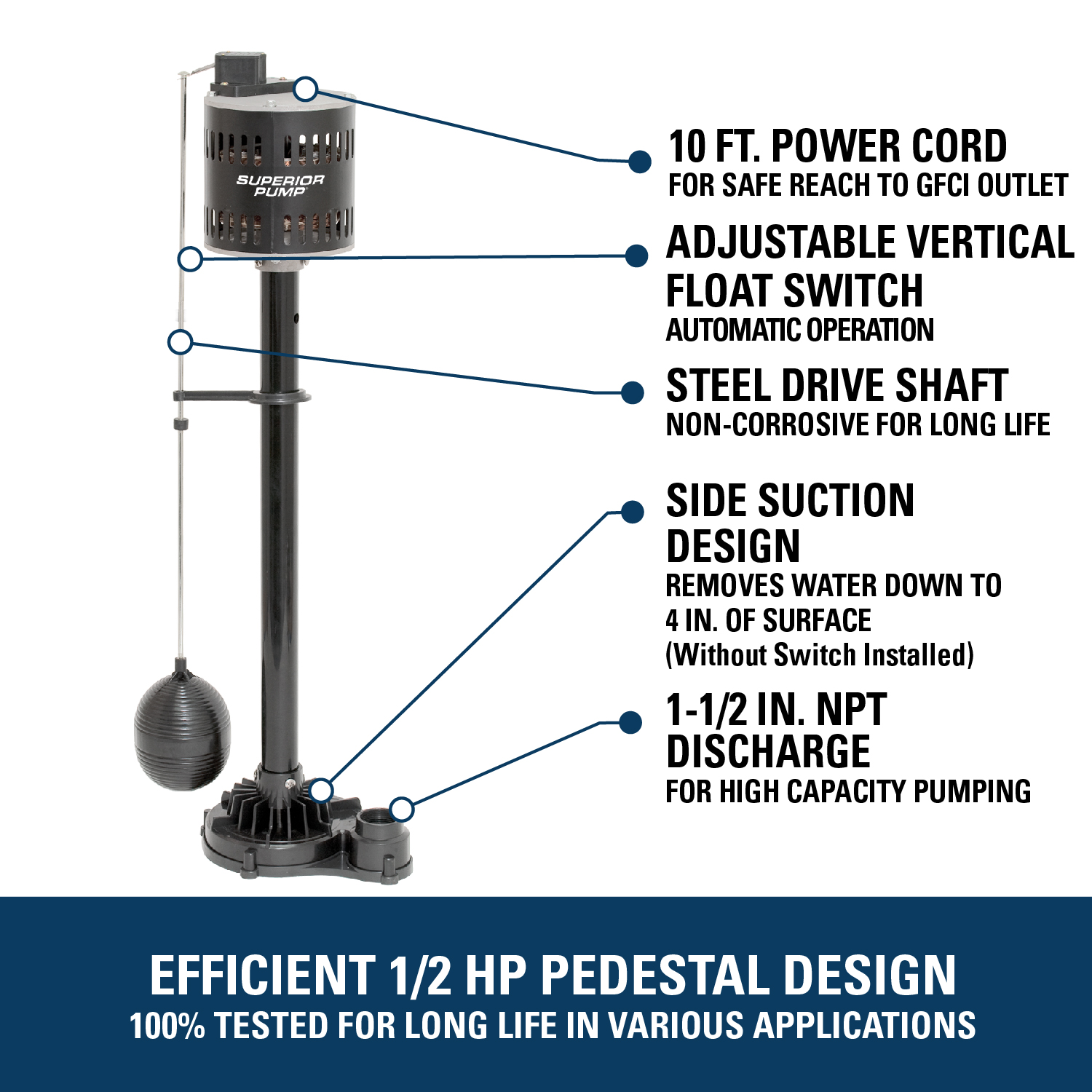

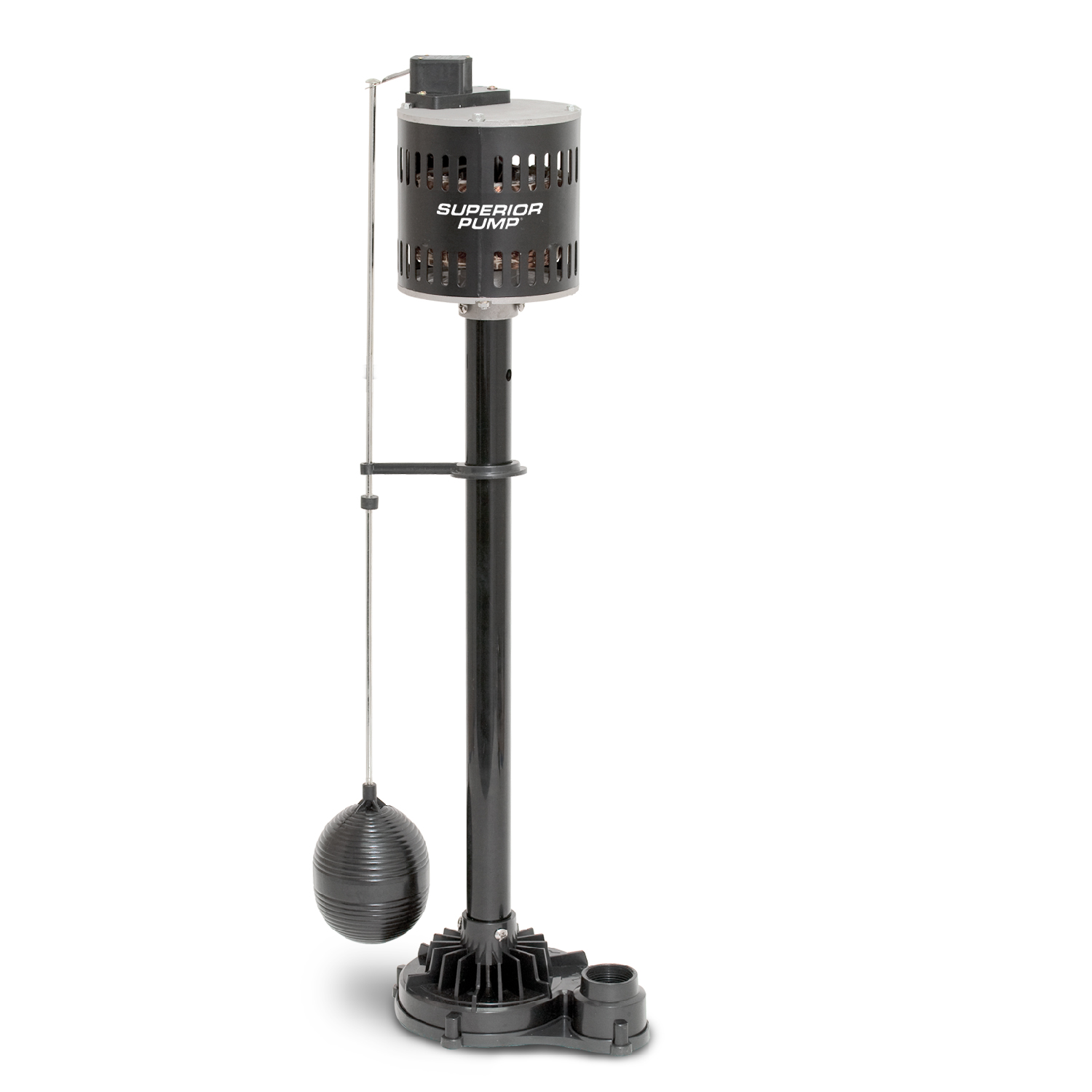

1/2 HP Thermoplastic Pedestal Sump Pump with Adjustable Vertical Float Switch
120 V, 60 Hz, 10 Ft. Cord, 3600 GPH

Product Features:

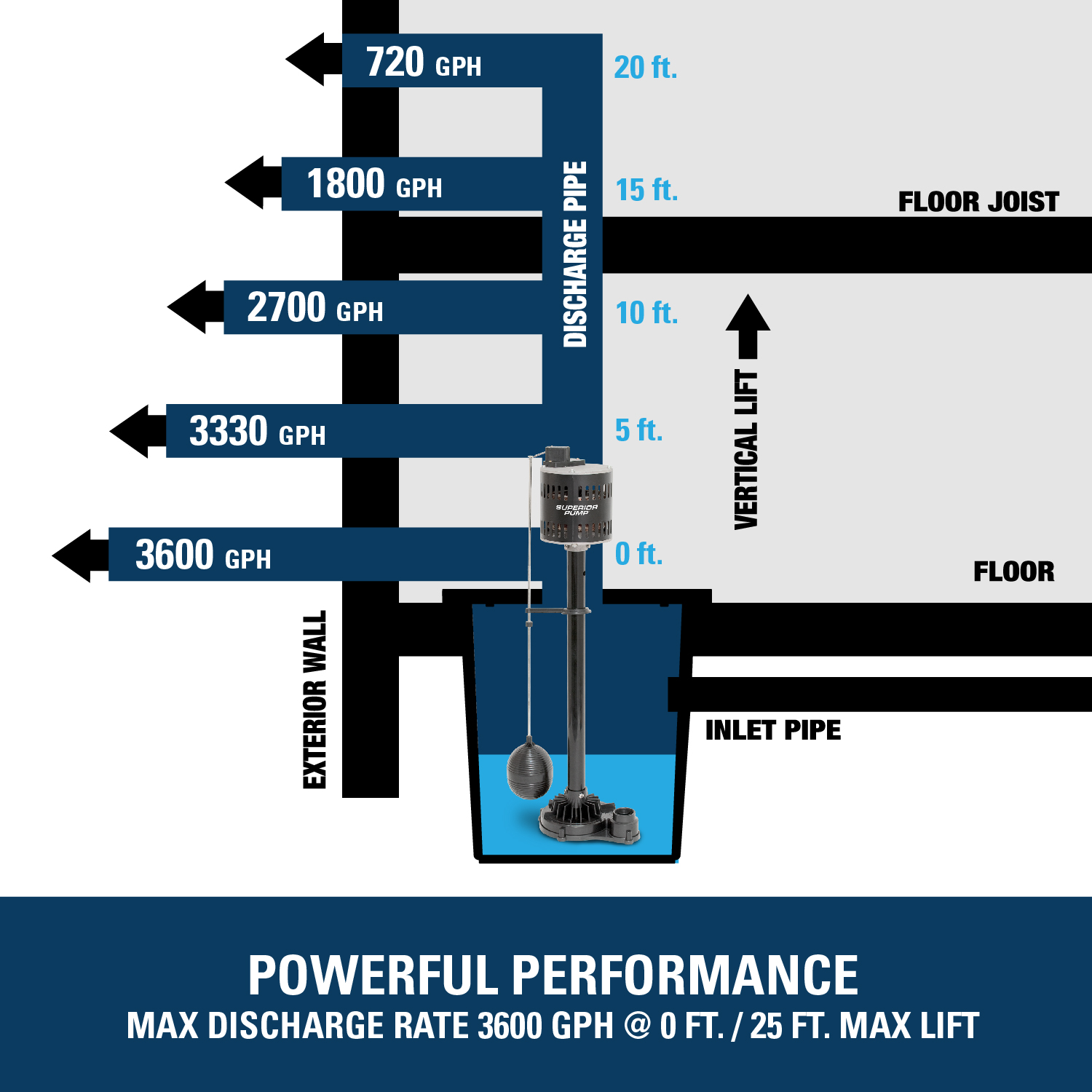

**POWERFUL PERFORMANCE** Maximum discharge flow rate 3600 GPH @ 0 ft. of vertical lift; 2700 GPH @ 10 ft. and engineered for reliable performance in sump applications requiring high lift performance (Maximum lift up to 25 ft.).

**ENGINEERED EFFICIENT** Efficient, PSC motor features premium 100% solid copper motor windings and dual o-ring motor seals for years of reliable groundwater removal.

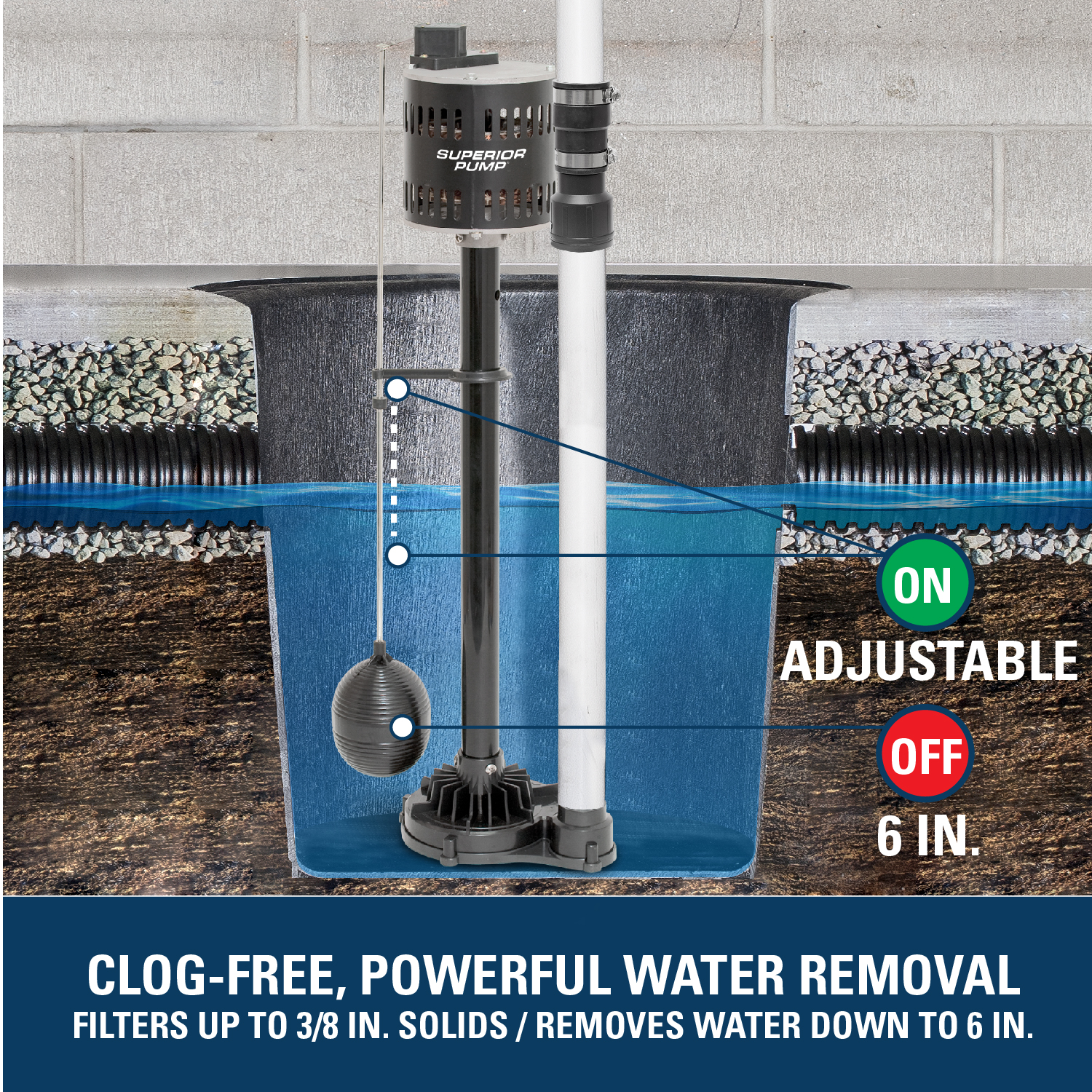

**CLOG-FREE, WORRY-FREE WATER REMOVAL** Pedestal sump pump, with side suction design, stainless steel impeller and serviceable intake screen, removes water fast and passes up to 3/8 in. solids, to minimize clogging.

**CERTIFIED SAFE, and WARRANTIED** Superior Pumps are 'Built To Last'. Factory tested and backed with a 1 year limited warranty. UL, CSA and SSPMA Certified for safe and dependable performance.

**LIGHTWEIGHT, DURABLE AND STURDY** Non-corrosive steel drive shaft, durable thermoplastic column and base for duraility and long life.

**GROUND WATER REMOVAL** Reliable groundwater removal to prevent residential flooding.

**10 FT. POWER CORD** The length you need for safe and convenient installation to the nearest GFCI outlet.

**CONVENIENT CONNECTIONS** 1-1/2 in. NPT Discharge for high volume water removal.

Technical Documentation

Performance:

  • Flow Rate Up To 3600 GPH @ 0 FT.
  • Head Up To 25 FT.

Technical Specifications:

  • Single Phase
  • Amps 3.06 A
  • Discharge Location SIDE
  • Discharge Size 1-1/2 IN NPT
  • HP 1/2 HP
  • Power Cord 10 FT. POWER CORD
  • Removes Water Down To 4 IN. FROM SURFACE (WITHOUT SWITCH INSTALLED)
  • Solids Handling 3/8 IN.
  • Switch Type INTEGRAL VERTICAL FLOAT SWITCH
  • Switch ON Levels ADJUSTABLE
  • Switch OFF Levels 6 IN.
  • Supply Voltage 120 V
  • Weight 18.8 LBS.

Product Specifications:

  • Liquid Temperature Range 35° F - 120° F
  • Maximum Working Pressure 10.8 PSI
  • Warranty 1 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Cooling Oil-Cooled
  • Impeller STAINLESS STEEL
  • Impeller Design NON-CLOGGING OPEN-TYPE IMPELLER
  • Motor PSC Motor with Thermal Overload Protection
  • Motor Bearing Ball Bearing (upper/lower)
  • Motor Casing THERMOPLASTIC
  • Motor Shaft Stainless Steel
  • Pump Base THERMOPLASTIC
  • Pump Body THERMOPLASTIC

Certifications:

  • culus
  • csa
  • sspma
