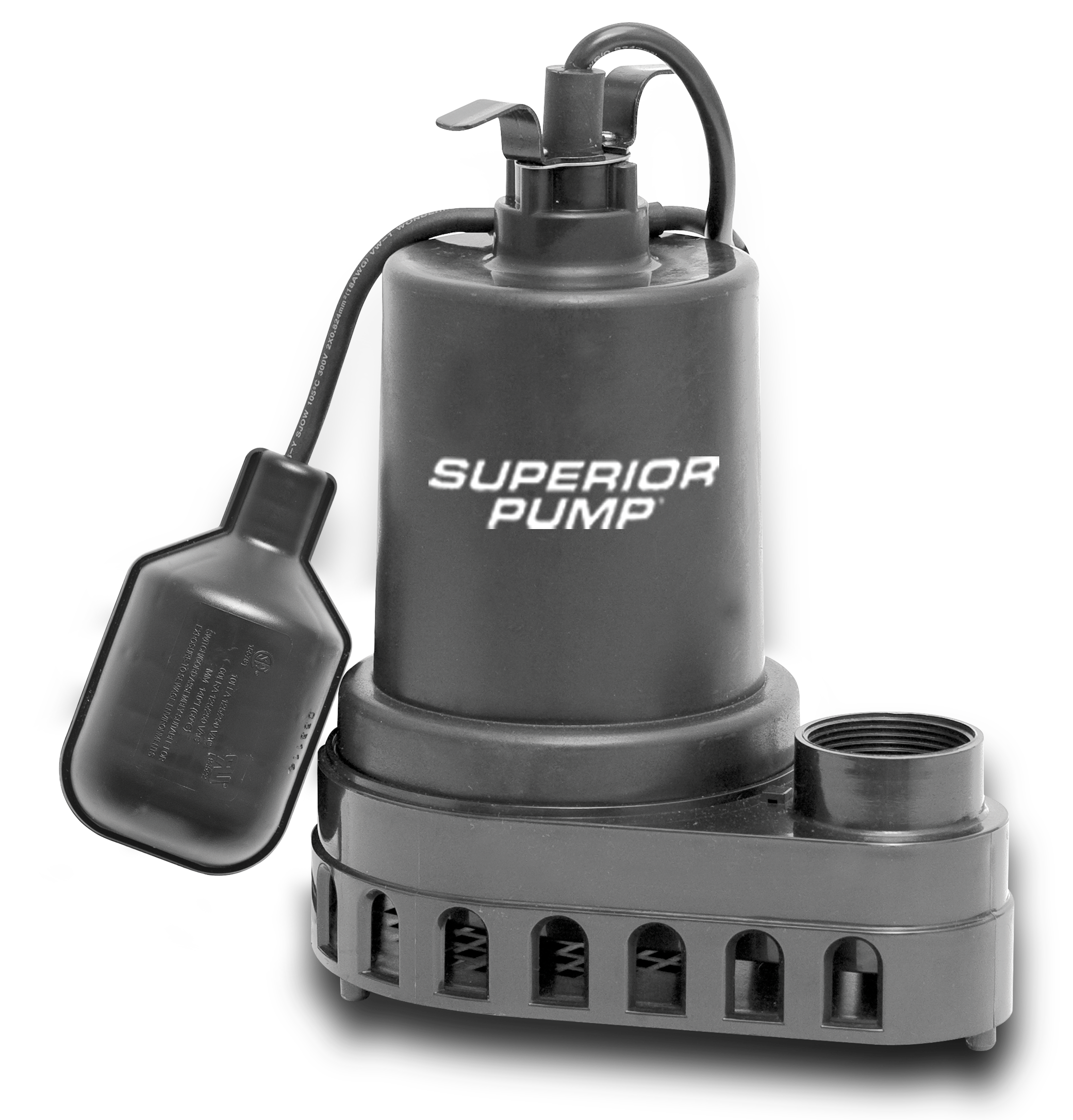

1/2 HP Fiberglass Reinforced Thermoplastic Submersible Sump Pump with Tether Float Switch
120 V, 60 Hz, 10 Ft. Cord, 3300 GPH

Product Features:

**POWERFUL PERFORMANCE** Maximum discharge flow rate 3300 GPH @ 0 ft. of vertical lift; 2520 GPH @ 10 ft. and engineered for reliable performance in sump applications requiring high lift performance (Maximum lift up to 25 ft.).

**ENGINEERED EFFICIENT** Efficient, PSC motor features premium 100% solid copper motor windings and dual o-ring motor seals for years of reliable groundwater removal.

**CLOG-FREE, FAST WATER REMOVAL** Fully submersible sump pump multi-purpose water transfer/removal pump, with bottom suction design, and serviceable intake screen, removes water fast, down to 1 in. of surface and passes up to 3/8 in. solids, to minimize clogging.

**CERTIFIED SAFE, and WARRANTIED** SUPERIOR PUMPS are Built to Last® with quality in mind. Every pump is 100% factory tested and backed with a 3 year limited warranty. UL and SSPMA Certified for safe and dependable performance.

**RUGGED, DURABLE AND LIGHTWEIGHT** Built for years of service; fiberglass reinforced thermoplastic, sealed construction for dependability and efficient operation.

**GROUND WATER REMOVAL** Reliable groundwater removal to prevent residential flooding.

**10 FT. POWER CORD** The length you need for safe and convenient installation to the nearest GFCI outlet.

**CONVENIENT CONNECTIONS** 1-1/2 in. NPT Discharge for high volume water removal.

**ERGONOMIC, PORTABLE** Comfortable finger-grip handle designed for easy carry and install.

Technical Documentation

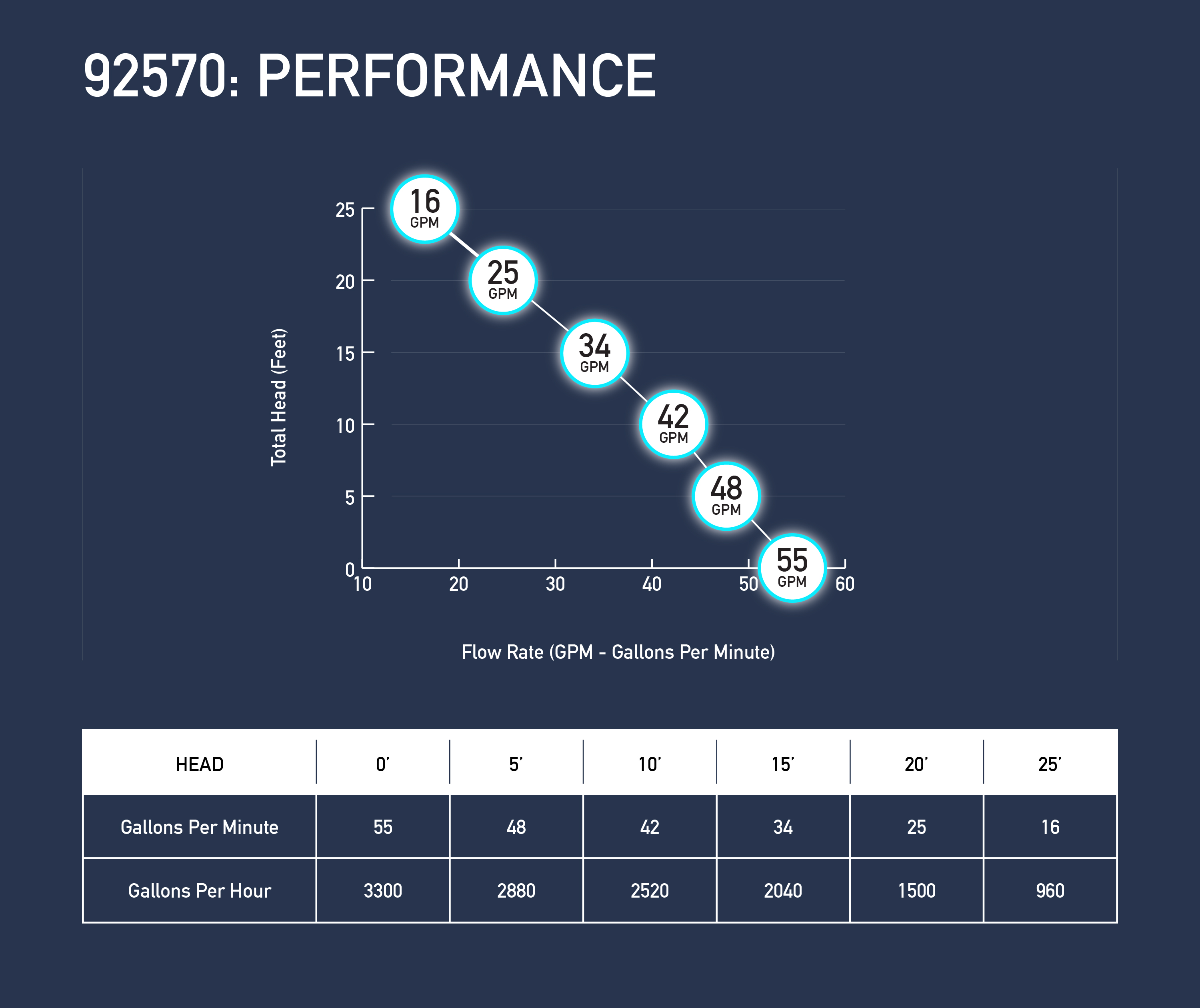

Performance:

  • Flow Rate Up To 3300 GPH @ 0 FT.
  • Head Up To 25 FT.

Technical Specifications:

  • Single Phase
  • Amps 4.9 A
  • Discharge Location SIDE
  • Discharge Size 1-1/2 IN NPT
  • HP 1/2 HP
  • Power Cord 10 FT. PIGGY-BACK POWER CORD
  • Removes Water Down To 1 IN. FROM SURFACE (WITHOUT SWITCH INSTALLED)
  • Solids Handling 3/8 IN.
  • Switch Type PIGGY-BACK TETHER FLOAT SWITCH
  • Switch ON Levels 10 IN.
  • Switch OFF Levels 5 IN.
  • Supply Voltage 120 V

Product Specifications:

  • Liquid Temperature Range 35° F - 120° F*
    *Intermittent use
  • Maximum Working Pressure 10.8 PSI
  • Warranty 3 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Cooling Oil-Cooled
  • Impeller STAINLESS STEEL
  • Impeller Design NON-CLOGGING VORTEX IMPELLER
  • Motor PSC Motor with Thermal Overload Protection
  • Motor Bearing Ball Bearing (upper/lower)
  • Motor Casing THERMOPLASTIC
  • Motor Shaft Stainless Steel
  • Pump Base THERMOPLASTIC
  • Pump Body THERMOPLASTIC

Certifications:

  • culus
  • sspma
