Technical Documentation

96110

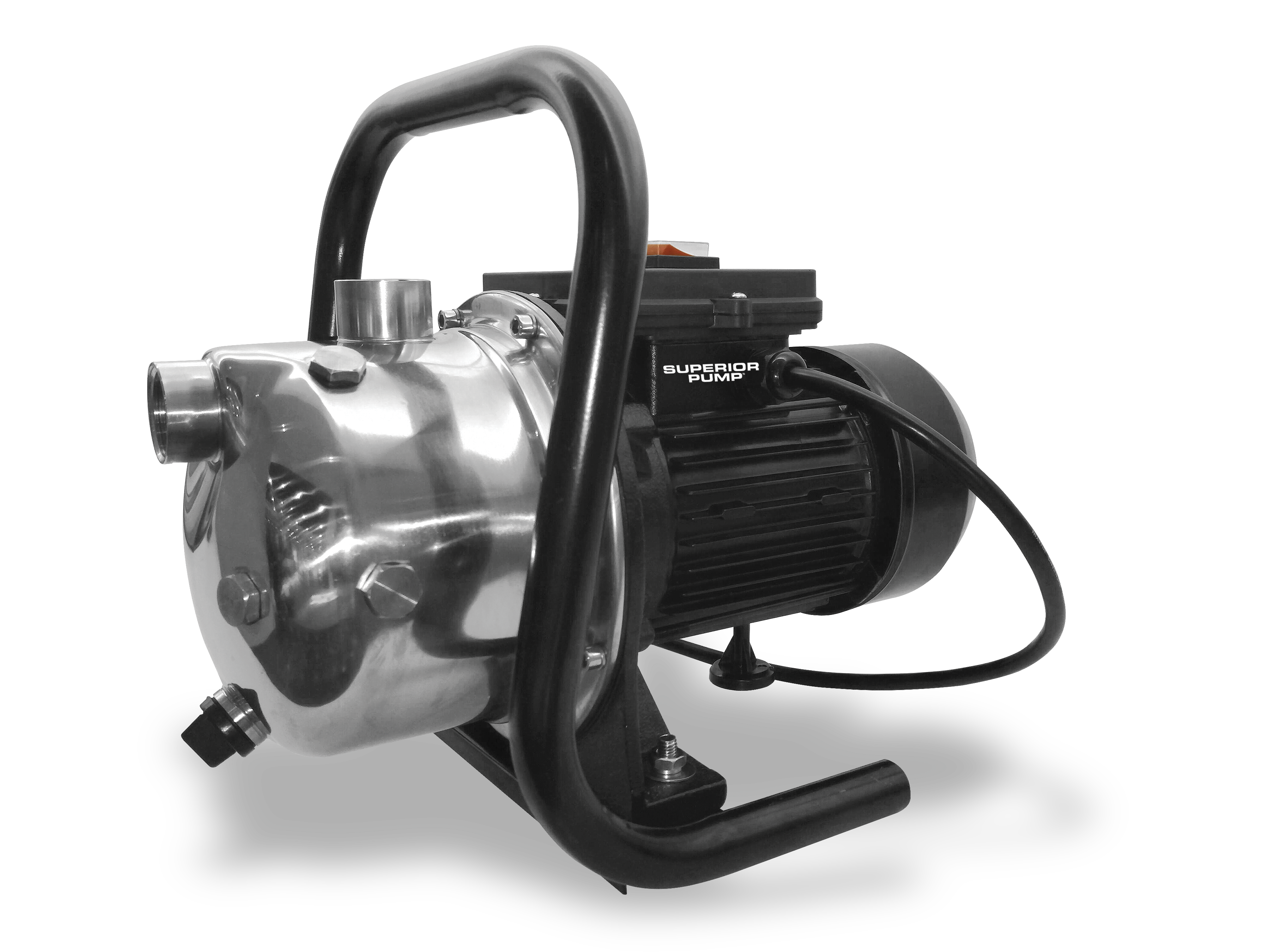

1 HP Stainless Steel Portable Lawn Sprinkler Pump
115 V, 60 Hz, 830 GPH

Product Features:

**POWERFUL PERFORMANCE** Maximum discharge flow rate of 830 GPH @ 0 ft. and engineered for reliable performance in high volume low pressure applications. (Maximum discharge pressure 72 PSI)

**ENGINEERED EFFICIENT** Efficient, high efficiency motor with solid 100% copper motor windings, for years of reliable on-demand, high volume water transfer.

**LAKES, PONDS, WELLS** Efficient and powerful water transfer from lakes, ponds or wells, for irrigiation, sprinkler systems, filling pools and more.

**CERTIFIED SAFE, and WARRANTIED** SUPERIOR PUMPS are Built to Last® with quality in mind, and this model is 100% factory tested and backed with a 1 year limited warranty. UL Certified for safe and dependable performance.

**DURABLE AND STURDY** Durable stainless steel construction for long life, in tough applications.

**CONVENIENT CONNECTIONS** 1 in. NPT suction with 1 in. NPT discharge for high volume water transfer. (PVC pipe not included.)

**EASY SET UP** Rugged epoxy-coated base, to ensure pump performs on a solid foundation.

Technical Documentation

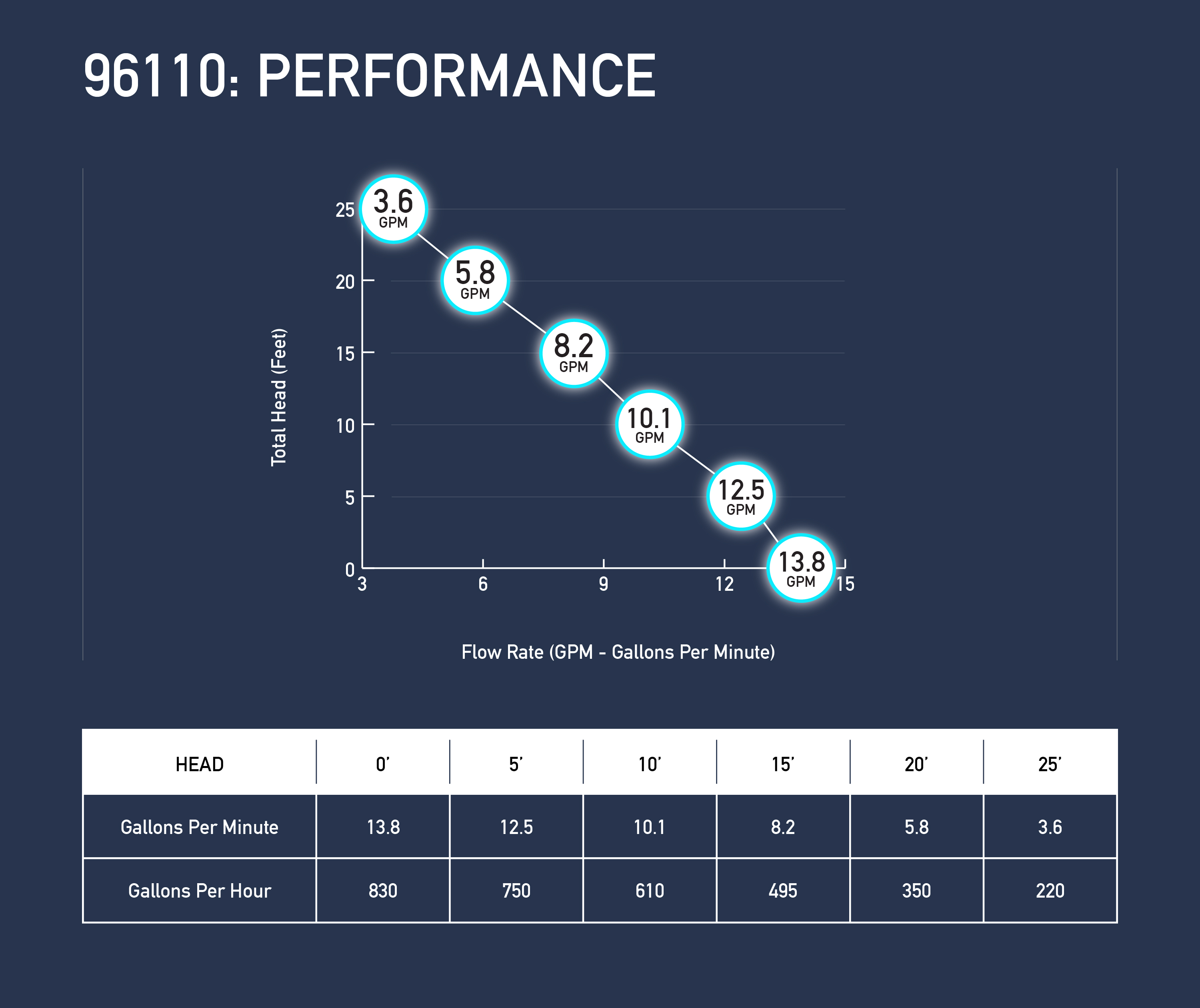

Performance:

  • Flow Rate Up To 830 GPH @ 0 Ft.
  • Head Up To 165 Ft.

Technical Specifications:

  • Amps 5.2 A
  • Discharge Size 1 IN.
  • HP 1 HP
  • Intake Size 1 IN.
  • Switch Type Convenient On/Off Switch
  • Supply Voltage 115 V

Product Specifications:

  • Liquid Temperature Range 35° F - 120° F
  • Maximum Working Pressure 72 PSI
  • Operating Position Horizontal
  • Warranty 1 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Fasteners Stainless Steel
  • Pump Base Coated Steel
  • Pump Body Stainless Steel

Certifications:

  • culus
