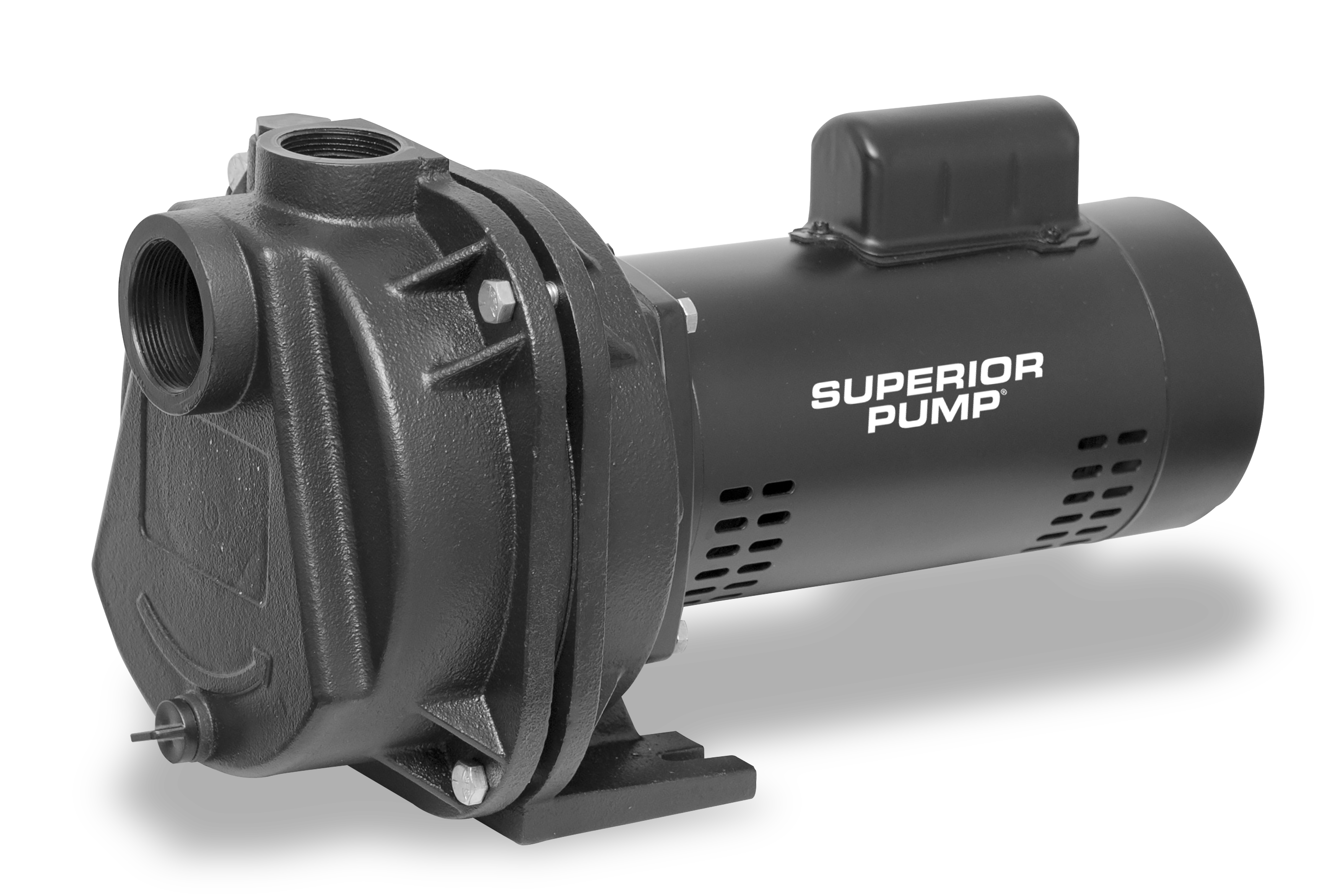

1 HP Cast Iron Lawn Sprinkler Pump
115/230 V, 60 Hz, 3780 GPH

Product Features:

**POWERFUL PERFORMANCE** Maximum discharge flow rate of 3780 GPH @ 0 ft. and engineered for reliable performance in high volume low pressure applications. (Maximum discharge pressure 45 PSI)

**ENGINEERED EFFICIENT** Efficient, high efficiency dual voltage motor with solid 100% copper motor windings, for years of reliable on-demand, high volume water transfer.

**LAKES, PONDS, WELLS** Efficient and powerful water transfer from lakes, ponds or wells, for irrigiation, sprinkler systems, filling pools and more.

**CERTIFIED SAFE, and WARRANTIED** SUPERIOR PUMPS are Built to Last® with quality in mind, and this model is 100% factory tested and backed with a 1 year limited warranty. UL Certified for safe and dependable performance.

**DURABLE AND STURDY** Durable epoxy-coated cast iron construction for long life, in tough applications.

**CONVENIENT CONNECTIONS** 2 in. NPT suction with 1-1/2 in. NPT discharge/drive for high volume water transfer. (PVC pipe not included.)

**EASY SET UP** Rugged epoxy-coated cast iron base, for permaneant installation.

Technical Documentation

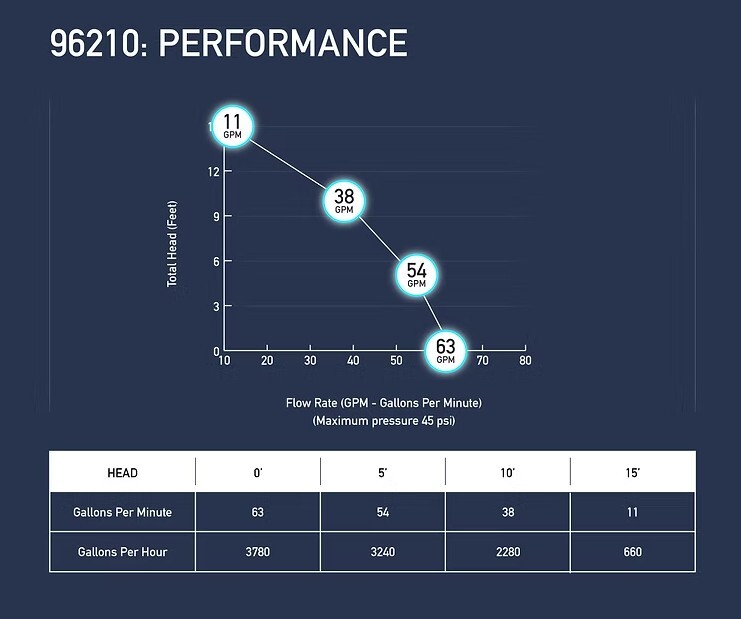

Performance:

  • Flow Rate Up To 3780 GPH @ 0 Ft.

Technical Specifications:

  • Amps 14 / 7 A
  • Discharge Size 1-1/2 IN.
  • HP 1 HP
  • Intake Size 2 IN.
  • Supply Voltage 115 / 230 V

Product Specifications:

  • Liquid Temperature Range 35° F - 120° F
  • Maximum Working Pressure 45 PSI
  • Operating Position Horizontal
  • Warranty 1 YEAR LIMITED WARRANTY

Construction Characteristics:

  • Fasteners Stainless Steel
  • Pump Base Cast Iron
  • Pump Body Cast Iron

Certifications:

  • csa
